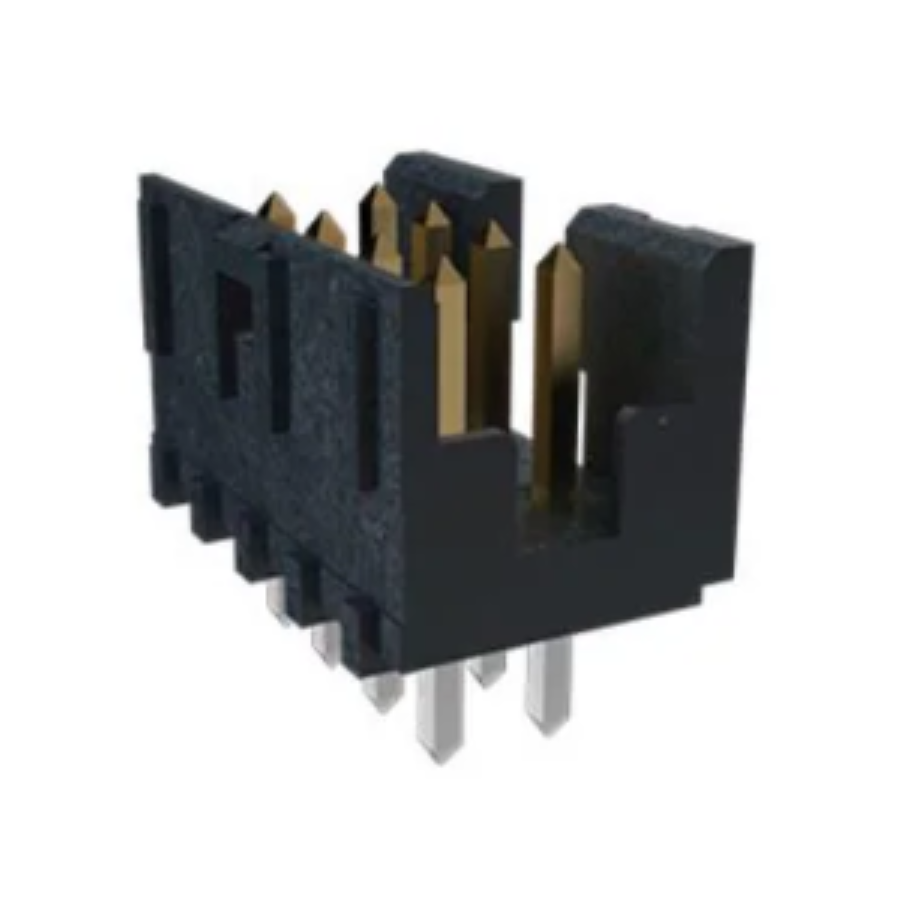

98414-G06-14LF
Manufacturer:
Amphenol
Mfr.Part #:
98414-G06-14LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Male Pin Number of Positions:14 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Width | 6.1 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating | 650 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Color | Cream |
| Gender | Male |
| Number of Contacts | 14 |
| Connector Type | Male Pin |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Packaging | Bulk |
| Termination Post Length | 2.5 mm |
Stock: 32
Distributors
pcbx
pcbxUnit Price$1.66157
Ext.Price$1.66157
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.66157 | $1.66157 |
| 10 | $1.62221 | $16.22210 |
| 25 | $1.61042 | $40.26050 |
| 50 | $1.59872 | $79.93600 |
| 100 | $1.58711 | $158.71100 |
