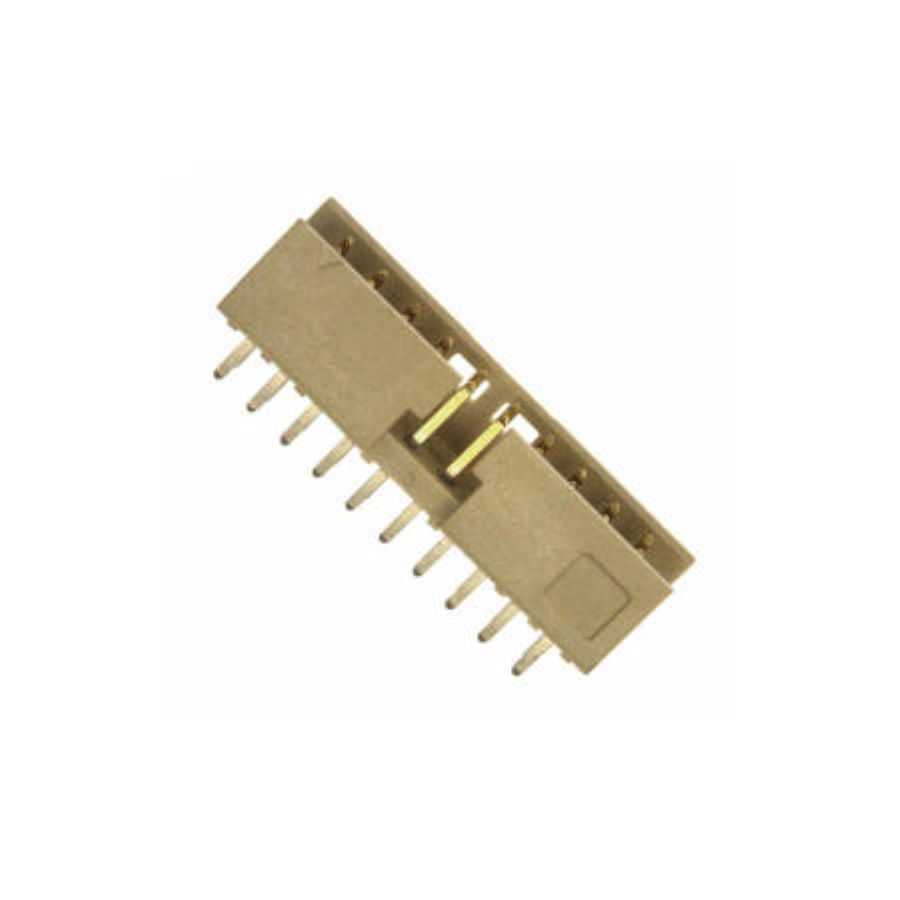

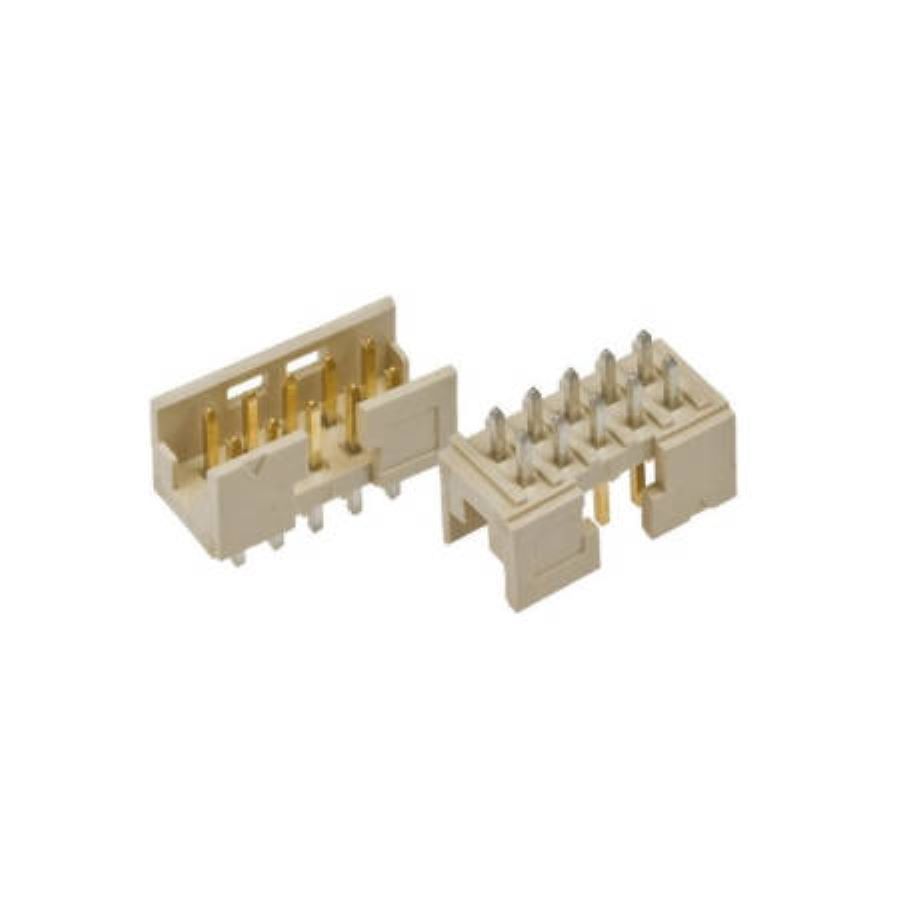

98414-G06-20LF
Manufacturer:
Amphenol
Mfr.Part #:
98414-G06-20LF
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:20 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 22 mm |
| Width | 6.1 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Voltage Rating | 650 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Lead Length | 2.5 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2 mm |
| Current Rating | 2 A |
| Orientation | Straight |
| Color | Cream |
| Gender | Pin (Male) |
| Number of Contacts | 20 |
| Connector Type | Header |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Contact Gender | Male |
| Mating Post Length | 4 mm |
| Termination Post Length | 2.5 mm |
Stock: 1622
Distributors
pcbx
pcbxUnit Price$0.92589
Ext.Price$0.92589
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92589 | $0.92589 |
| 10 | $0.82586 | $8.25860 |
| 25 | $0.78824 | $19.70600 |
| 50 | $0.69705 | $34.85250 |
| 100 | $0.61640 | $61.64000 |
