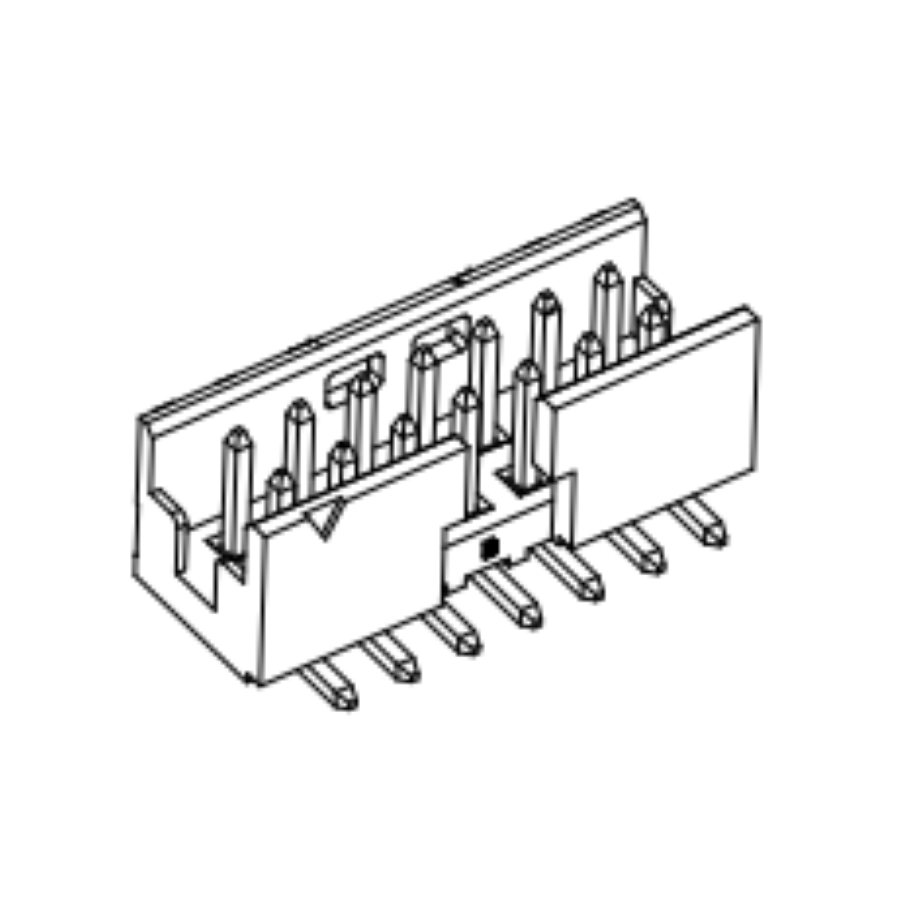

98424-F52-08ALF
Manufacturer:
Amphenol
Mfr.Part #:
98424-F52-08ALF
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Male Pin Number of Positions:8 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Depth | 6.1 mm |
| RoHS | Compliant |
| Contact Plating | GXT, Gold |
| Pitch | 2 mm |
| Orientation | Straight |
| Color | Cream |
| Gender | Male |
| Number of Contacts | 8 |
| Connector Type | Male Pin |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Thermoplastic |
| Housing Color | Cream |
| Contact Mating Length | 3.9878 mm |
| Mating Post Length | 4 mm |
Stock: 1638
Distributors
pcbx
pcbxUnit Price$0.71985
Ext.Price$0.71985
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71985 | $0.71985 |
| 10 | $0.60957 | $6.09570 |
| 25 | $0.60441 | $15.11025 |
| 50 | $0.59930 | $29.96500 |
| 100 | $0.51809 | $51.80900 |
| 300 | $0.49848 | $149.54400 |
| 500 | $0.47961 | $239.80500 |
| 1000 | $0.37959 | $379.59000 |
