9HT7-32.768KDZF-T
Manufacturer:
TXC
Mfr.Part #:
9HT7-32.768KDZF-T
Datasheet:
Description:

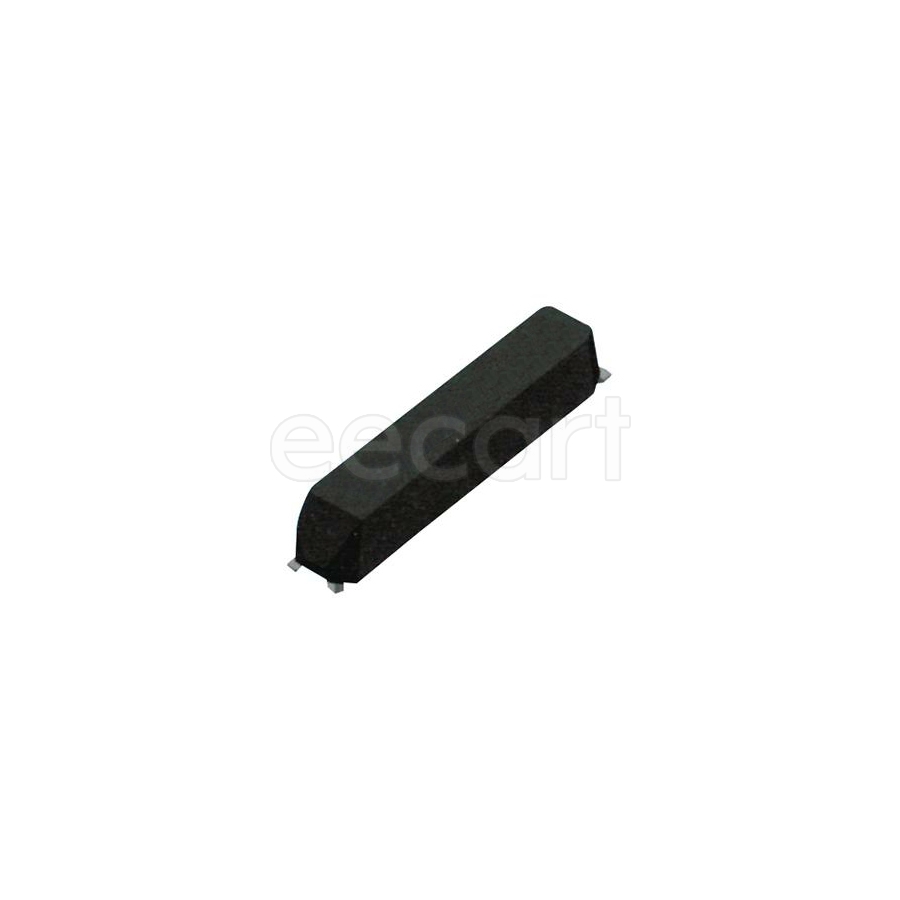

Crystals 6.90mmL×1.40mmW×0.50mmH SMD/SMT 32.768 kHz 12.5 pF
| Parameter | Value |
|---|---|
| Tolerance | 0.002 % |
| ESR (Equivalent Series Resistance) | 65 kΩ |
| Length | 1.4 mm |
| Width | 1.397 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 508 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 0.002 % |
| Load Capacitance | 12.5 pF |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Schedule B | 8541600080 |
| Operating Mode | Fundamental |
| Drive Level | 1 µW |
| Height - Seated (Max) | 1.4 mm |
Stock: 1849
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.24109 | $2.41090 |
| 25 | $0.23590 | $5.89750 |
| 50 | $0.23083 | $11.54150 |
| 100 | $0.20946 | $20.94600 |
| 300 | $0.20073 | $60.21900 |
| 500 | $0.19236 | $96.18000 |
| 1000 | $0.18584 | $185.84000 |
| 3000 | $0.17953 | $538.59000 |
| 5000 | $0.16757 | $837.85000 |
