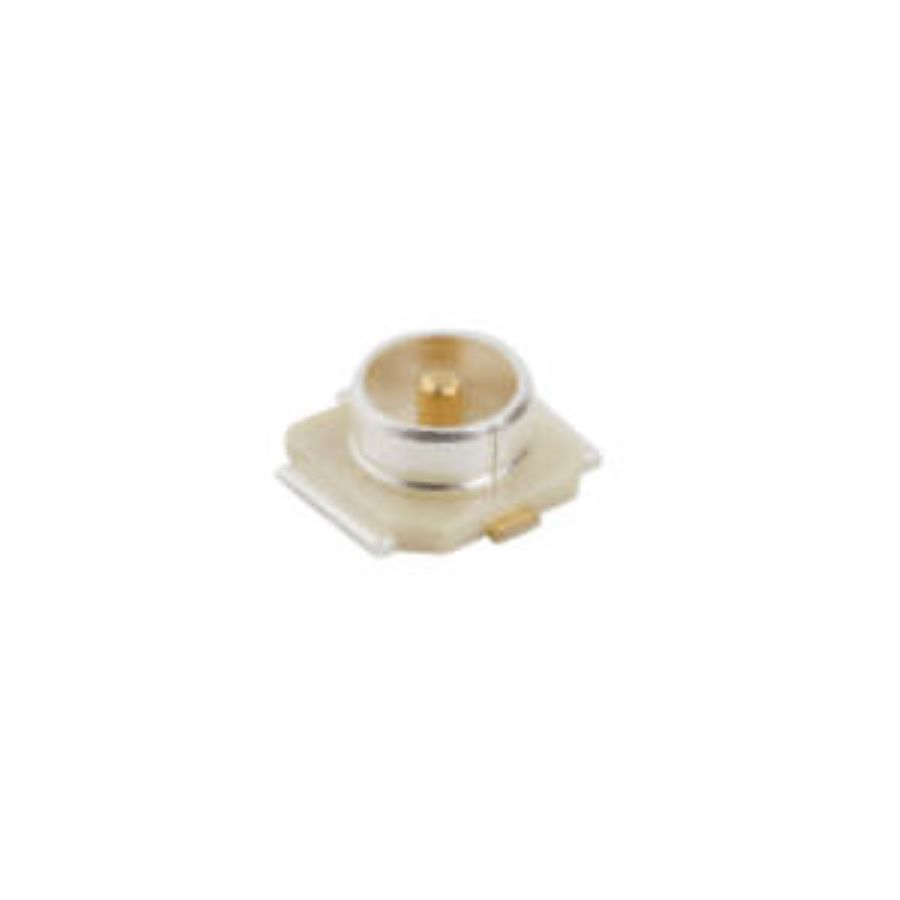

A-1JB
Manufacturer:
Amphenol
Mfr.Part #:
A-1JB
Datasheet:
Description:
RF / Coaxial Connectors SMD/SMT Coaxial, Male Pin 50 Ω
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 700 mΩ |
| Length | 2.6 mm |
| Width | 4.3 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Height | 1.244 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 500 MΩ |
| REACH SVHC | No SVHC |
| Weight | 29.993795 mg |
| Dielectric Material | Liquid Crystal Polymer |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Contact Material(Contact Finish) | Brass |
| Frequency | 6 Hz |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 1 |
| Body Material | Bronze, Liquid Crystal Polymer, Polymer |
| Connector Type | Coaxial, Male Pin |
| Max Frequency | 6 GHz |
| Insulation Material | Polymer |
| Fastening Type | Snap |
| Plating | Liquid Crystal Polymer, Polymer |
| Body Plating | Silver |
| Schedule B | 8536695050 |
| RF Series | AMC |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 2117
Distributors
pcbx
pcbxUnit Price$0.34752
Ext.Price$0.34752
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34752 | $0.34752 |
| 10 | $0.31067 | $3.10670 |
| 50 | $0.27773 | $13.88650 |
| 100 | $0.23819 | $23.81900 |
| 500 | $0.20428 | $102.14000 |
| 1000 | $0.19557 | $195.57000 |
| 3000 | $0.18723 | $561.69000 |
| 5000 | $0.17924 | $896.20000 |
