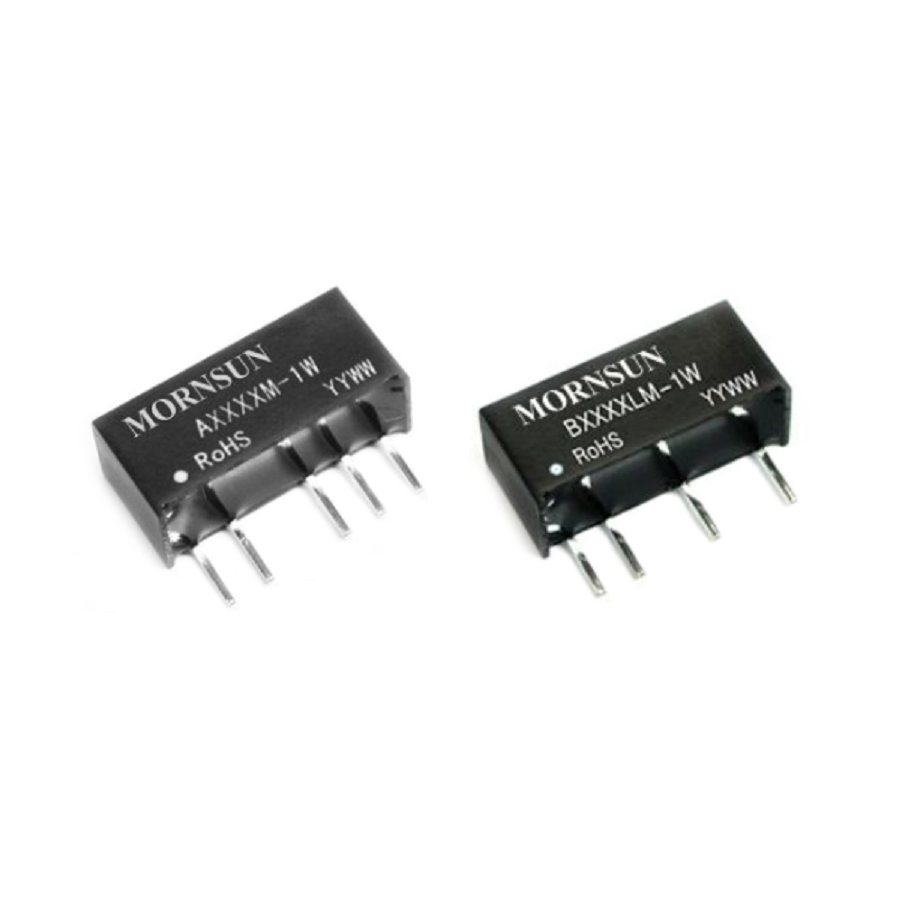

A0515M-1W
Manufacturer:
MORNSUN
Mfr.Part #:
A0515M-1W
Datasheet:
Description:
DC to DC Converters SIP Through Hole Nominal Input Voltage:5 V Min Input Voltage:4.5 V Max Input Voltage:5.5 V 79 %
| Parameter | Value |
|---|---|
| Length | 16.5 mm |
| Width | 6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.5 mm |
| Packaging | Tube |
| RoHS | Compliant |
| Min Input Voltage | 4.5 V |
| Max Input Voltage | 5.5 V |
| Isolation Voltage | 1 kV |
| Output Power | 1 W |
| Efficiency | 79 % |
| Nominal Input Voltage | 5 V |
| Output Current-Channel 1 | 33 mA |
| Output Current-Channel 2 | -33 mA |
| Output Voltage-Channel 1 | 15 V |
| Output Voltage-Channel 2 | -15 V |
