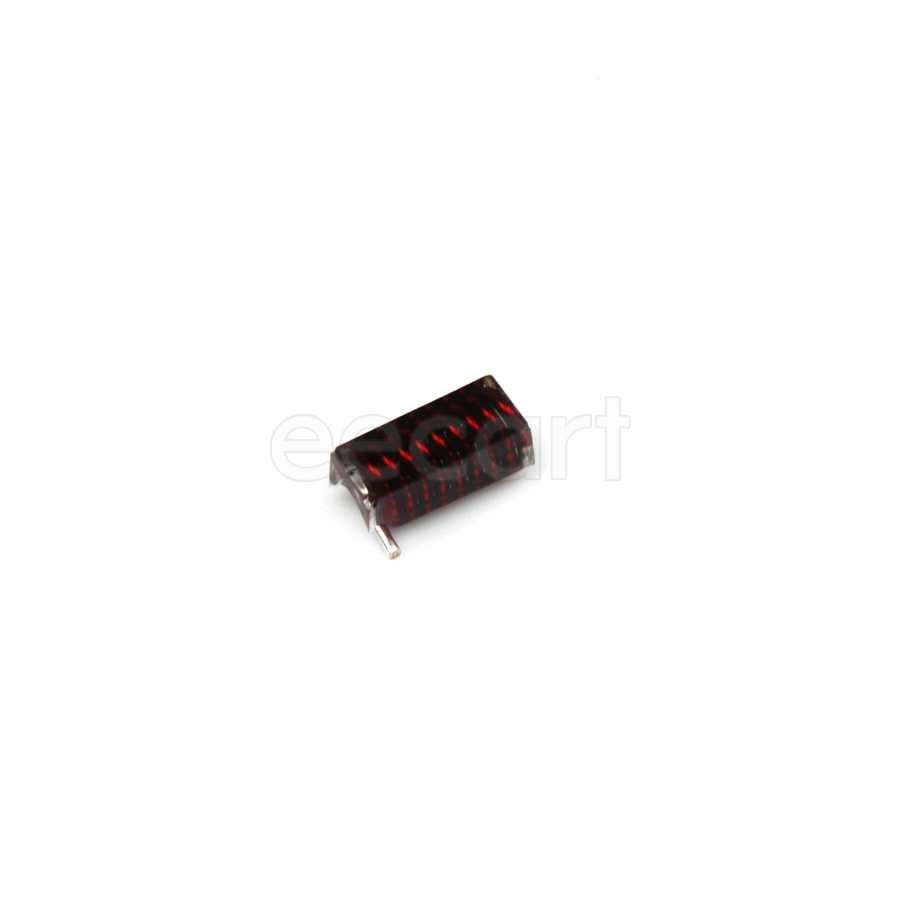

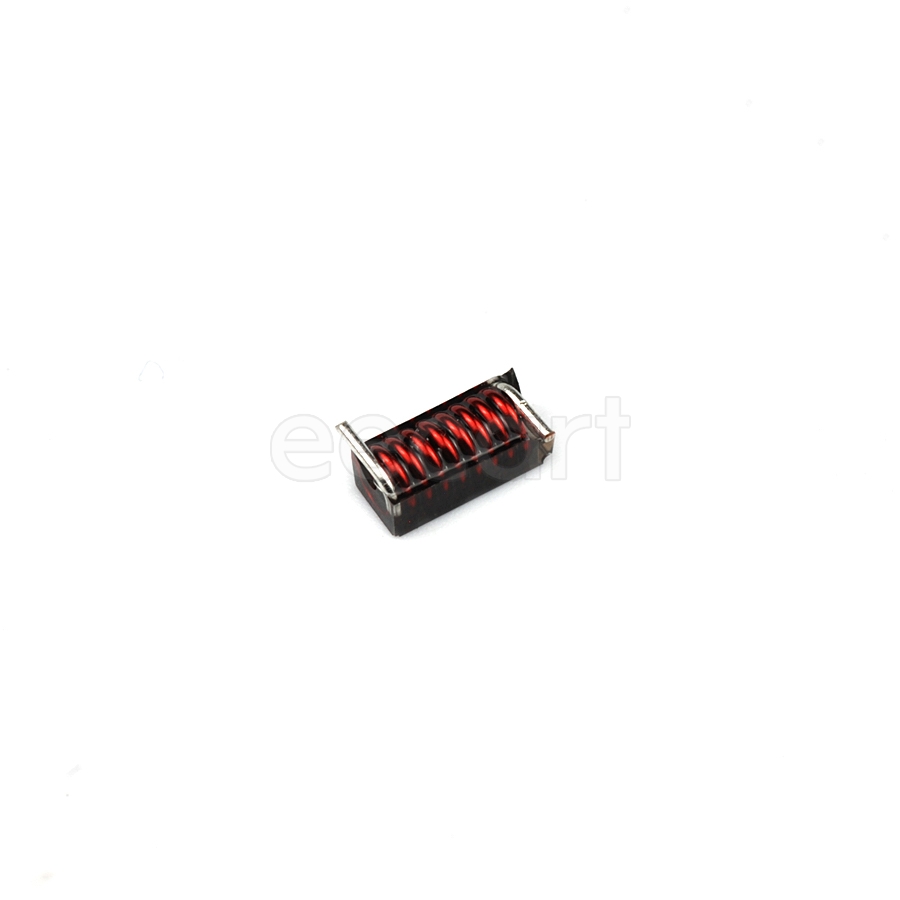

A05TGLC
Manufacturer:
Coilcraft
Mfr.Part #:
A05TGLC
Datasheet:
Description:
Fixed Inductors 4.45mmL×3.94mmW×3.15mmH SMD/SMT 18.5 nH 2 % 4 A 3.9 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 2 % |
| Length | 4.45 mm |
| Width | 3.94 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Height | 3.15 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 2.5 GHz |
| Q Factor | 132 |
| Current Rating | 4 A |
| DC Resistance (DCR) | 3.9 mΩ |
| Test Frequency | 150 MHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Inductance | 18.5 nH |
| Core Material | Air |
| RMS Current (Irms) | 4 A |
| inductance tolerance | 2 % |
| Max DC Current | 4 A |
| Shielding | Unshielded |
| Height - Seated (Max) | 3.15 mm |
| Type | Wirewound |
