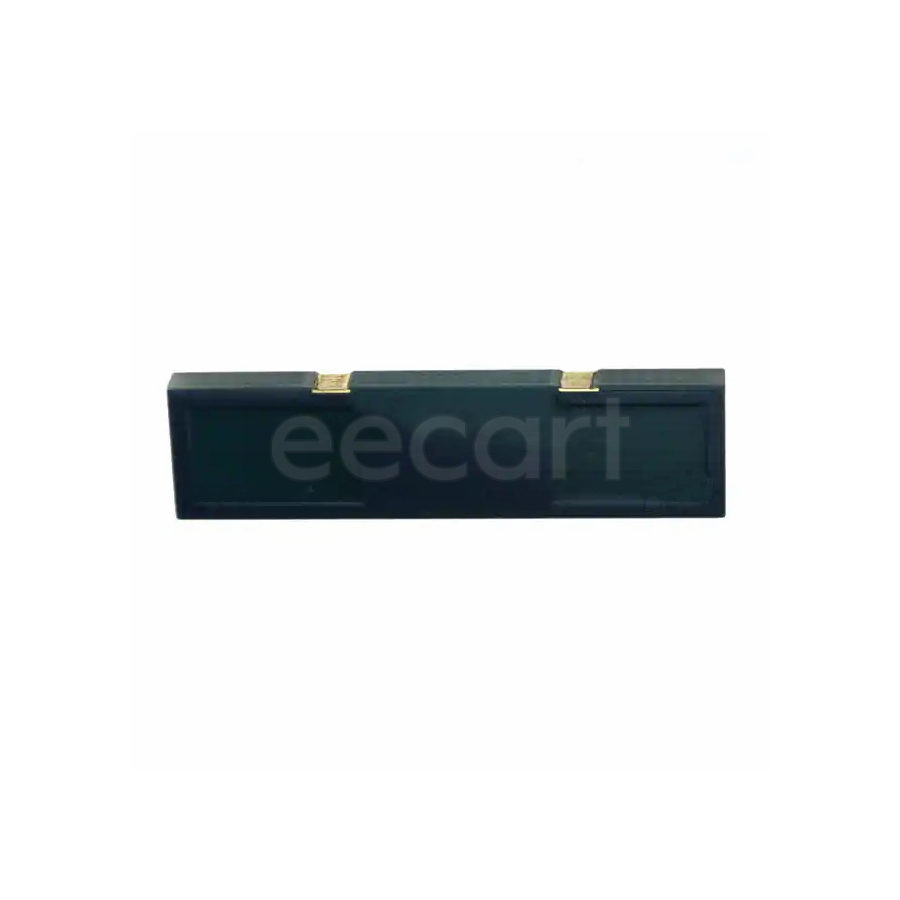

A10315
Manufacturer:
Antenova
Mfr.Part #:
A10315
Datasheet:
Description:
RF - Antennas 40.00mmL×10.00mmW×3.20mmH SMD/SMT -1.5 dB
| Parameter | Value |
|---|---|
| Length | 40 mm |
| Width | 10 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | |
| Height | 3.2004 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Impedance | 50 Ω |
| Frequency | 960 MHz |
| Bandwidth | |
| Gain | -1.3 dB, -1.5 dB |
| Number of Bands | 5 |
| Return Loss | -8 dB |
| Frequency Group | UHF (300 MHz to 1 GHz), UHF (1 GHz to 2 GHz) |
| Antenna Type | PCB Trace |
| Applications | GSM, UMTS |
| VSWR | 2.3:1 |
| Frequency Range | 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz |
Stock: 3856
Distributors
pcbx
pcbxUnit Price$2.63439
Ext.Price$2.63439
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.63439 | $2.63439 |
| 10 | $1.99410 | $19.94100 |
| 25 | $1.83454 | $45.86350 |
| 50 | $1.74451 | $87.22550 |
| 100 | $1.65890 | $165.89000 |
| 300 | $1.59039 | $477.11700 |
| 500 | $1.52469 | $762.34500 |
| 1000 | $1.48314 | $1483.14000 |
