A16-300
Manufacturer:
JDTfuse
Mfr.Part #:
A16-300
Datasheet:
Description:

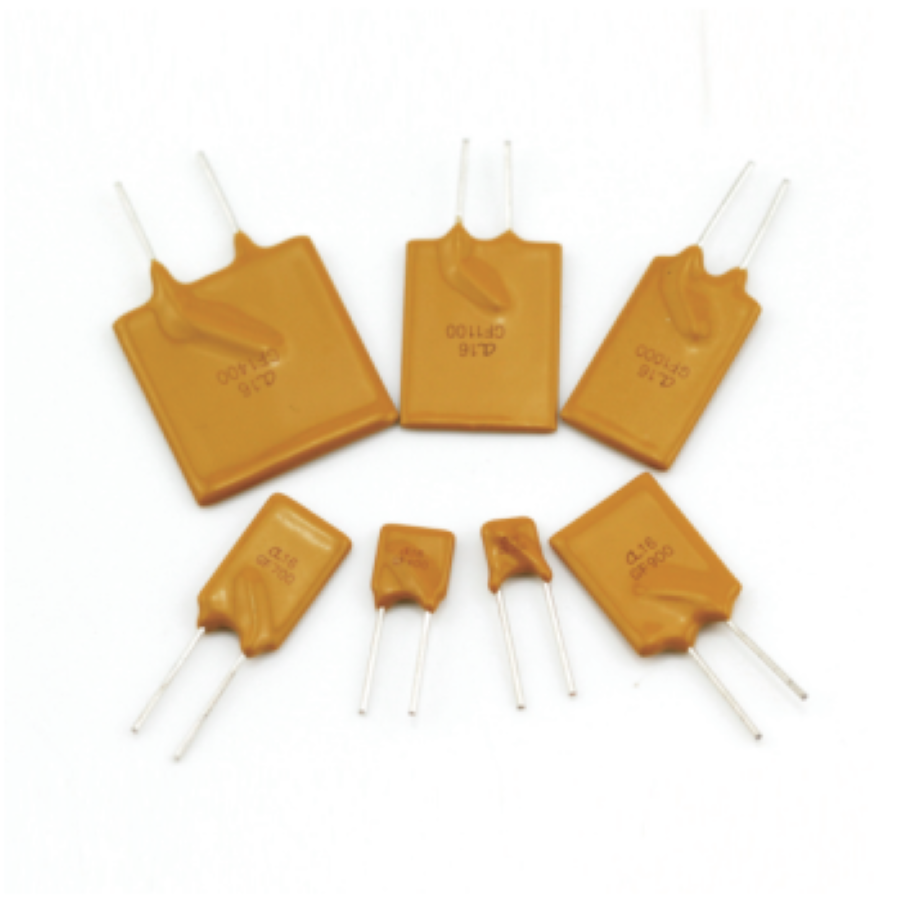

PTC Resettable Fuses Plug Through Hole Hold Current:3 A Voltage Rating:16 V Trip Current:5.1 A
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 7.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 16 V |
| Thickness | 3 mm |
| RoHS | Compliant |
| Max Current Rating | 40 A |
| Hold Current | 3 A |
| Time to Trip | 2 s |
| Trip Current | 5.1 A |
| Maximum Resistance 1 Hour (R1max) | 110 mΩ |
| Minimum Resistance Initial (Rmin) | 20 mΩ |
| Lead Spacing | 5.1 mm |
Stock: 2966
Distributors
pcbx
pcbxUnit Price$0.11462
Ext.Price$0.11462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.11462 | $0.11462 |
| 10 | $0.05731 | $0.57310 |
| 50 | $0.05160 | $2.58000 |
| 100 | $0.04646 | $4.64600 |
| 500 | $0.03926 | $19.63000 |
| 1000 | $0.03317 | $33.17000 |
| 3000 | $0.03159 | $94.77000 |
| 5000 | $0.03009 | $150.45000 |
| 10000 | $0.02832 | $283.20000 |
