A250-080
Manufacturer:
JDTfuse
Mfr.Part #:
A250-080
Datasheet:
Description:

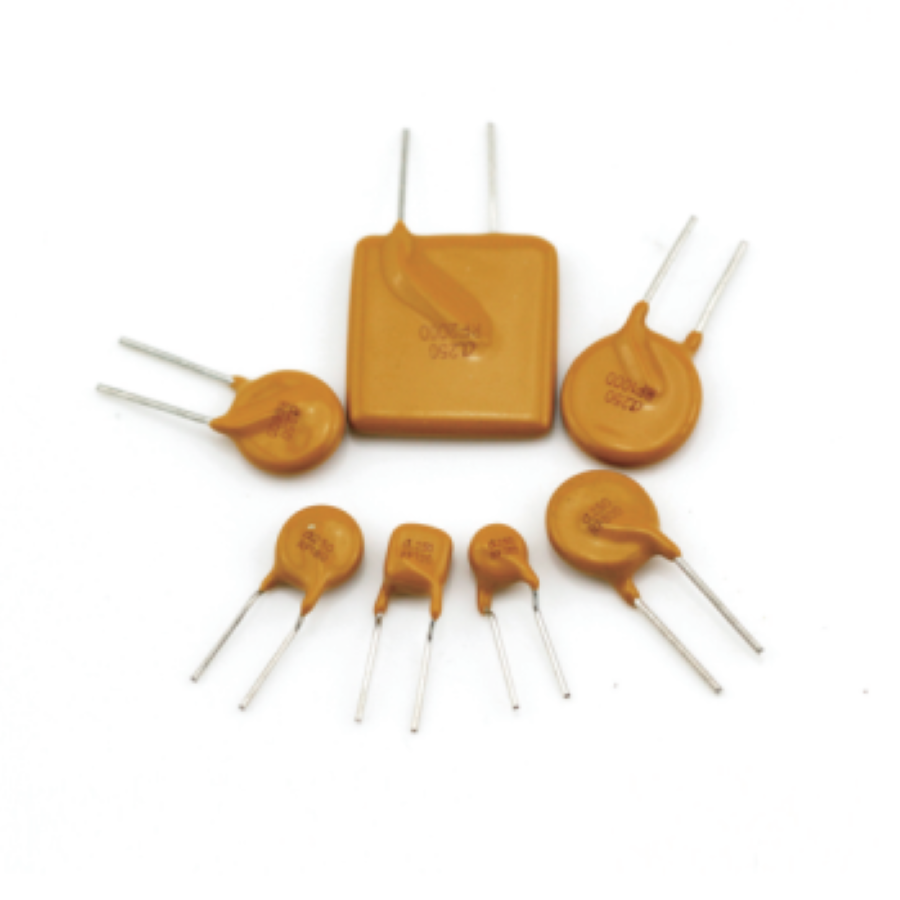

PTC Resettable Fuses Plug Through Hole Hold Current:80 mA Voltage Rating:250 V Trip Current:160 mA
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 7.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 250 V |
| Thickness | 4.5 mm |
| RoHS | Compliant |
| Max Current Rating | 3 A |
| Hold Current | 80 mA |
| Time to Trip | 3 s |
| Trip Current | 160 mA |
| Maximum Resistance 1 Hour (R1max) | 33 Ω |
| Minimum Resistance Initial (Rmin) | 12 Ω |
| Lead Spacing | 5.1 mm |
Stock: 56
Distributors
pcbx
pcbxUnit Price$0.12460
Ext.Price$0.12460
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12460 | $0.12460 |
| 10 | $0.06230 | $0.62300 |
| 50 | $0.05606 | $2.80300 |
| 100 | $0.05044 | $5.04400 |
| 500 | $0.04006 | $20.03000 |
| 1000 | $0.03531 | $35.31000 |
| 3000 | $0.03354 | $100.62000 |
| 5000 | $0.03185 | $159.25000 |
| 10000 | $0.02999 | $299.90000 |
