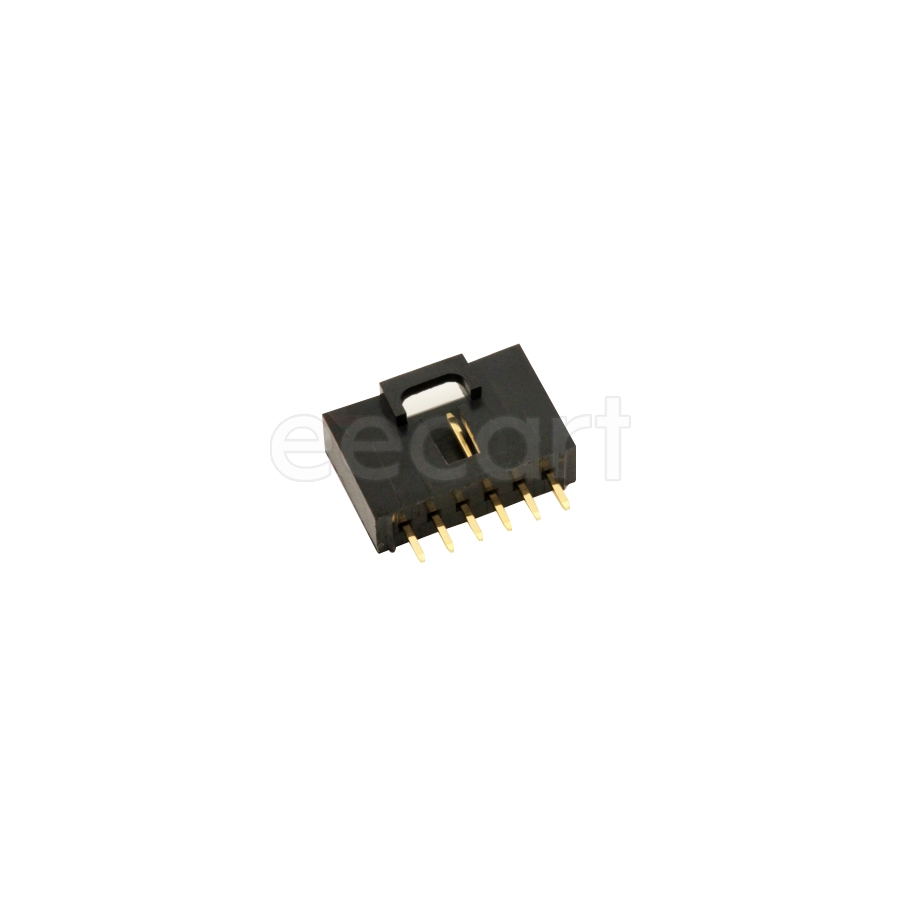

A2547WV-6P
Manufacturer:
CJT
Mfr.Part #:
A2547WV-6P
Datasheet:
Description:
Headers and Wire Housings Through Hole Receptacle Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Orientation | Vertical |
| Gender | Male |
| Connector Type | Header |
| Contact Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Mating Post Length | |
| Termination Post Length | |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Color | Black |
| Housing Color | Black |
Stock: 2120
Distributors
pcbx
pcbxUnit Price$0.41616
Ext.Price$0.41616
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41616 | $0.41616 |
| 10 | $0.32842 | $3.28420 |
| 25 | $0.29834 | $7.45850 |
| 50 | $0.27101 | $13.55050 |
| 100 | $0.24619 | $24.61900 |
| 300 | $0.22548 | $67.64400 |
| 500 | $0.20651 | $103.25500 |
| 1000 | $0.19419 | $194.19000 |
