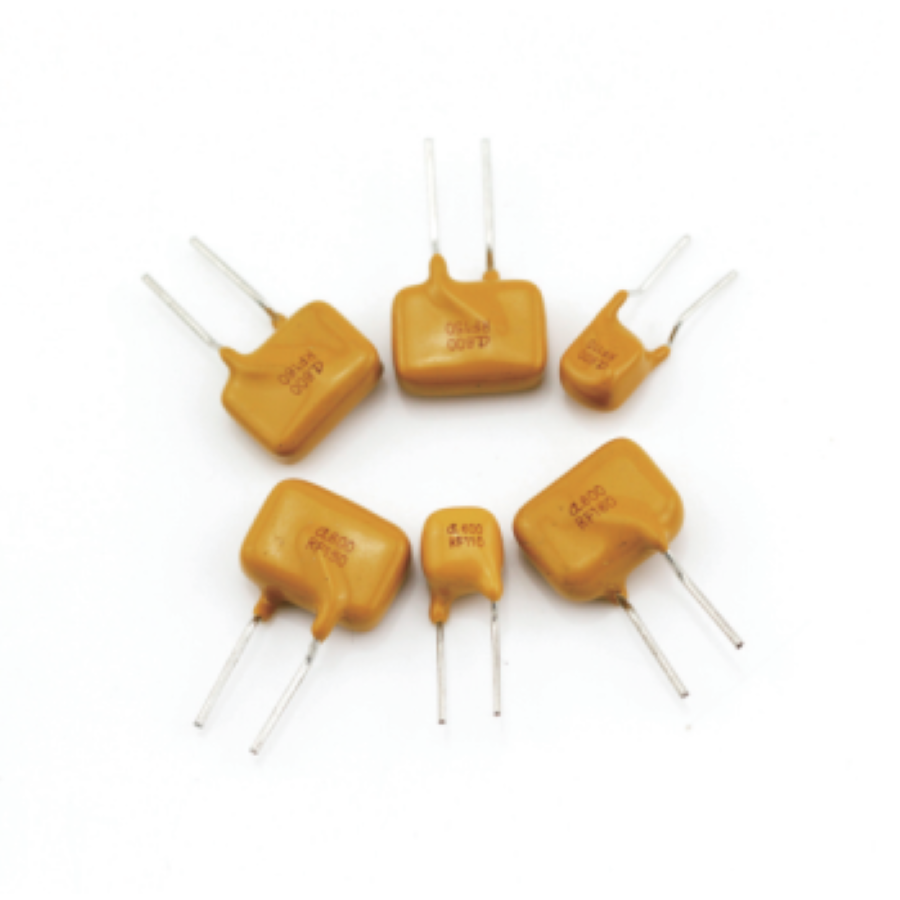

A600-150
Manufacturer:
JDTfuse
Mfr.Part #:
A600-150
Datasheet:
Description:
PTC Resettable Fuses Plug Through Hole Hold Current:150 mA Voltage Rating:600 V Trip Current:300 mA
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 7.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Voltage Rating | 600 V |
| Thickness | 6 mm |
| RoHS | Compliant |
| Max Current Rating | 3 A |
| Hold Current | 150 mA |
| Time to Trip | 5 s |
| Trip Current | 300 mA |
| Maximum Resistance 1 Hour (R1max) | 14 Ω |
| Minimum Resistance Initial (Rmin) | 5 Ω |
| Lead Spacing | 5.1 mm |
Stock: 260
Distributors
pcbx
pcbxUnit Price$0.13267
Ext.Price$0.13267
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.13267 | $0.13267 |
| 10 | $0.11879 | $1.18790 |
| 50 | $0.10637 | $5.31850 |
| 100 | $0.08844 | $8.84400 |
| 500 | $0.07353 | $36.76500 |
| 1000 | $0.07020 | $70.20000 |
| 3000 | $0.06702 | $201.06000 |
| 5000 | $0.06399 | $319.95000 |
