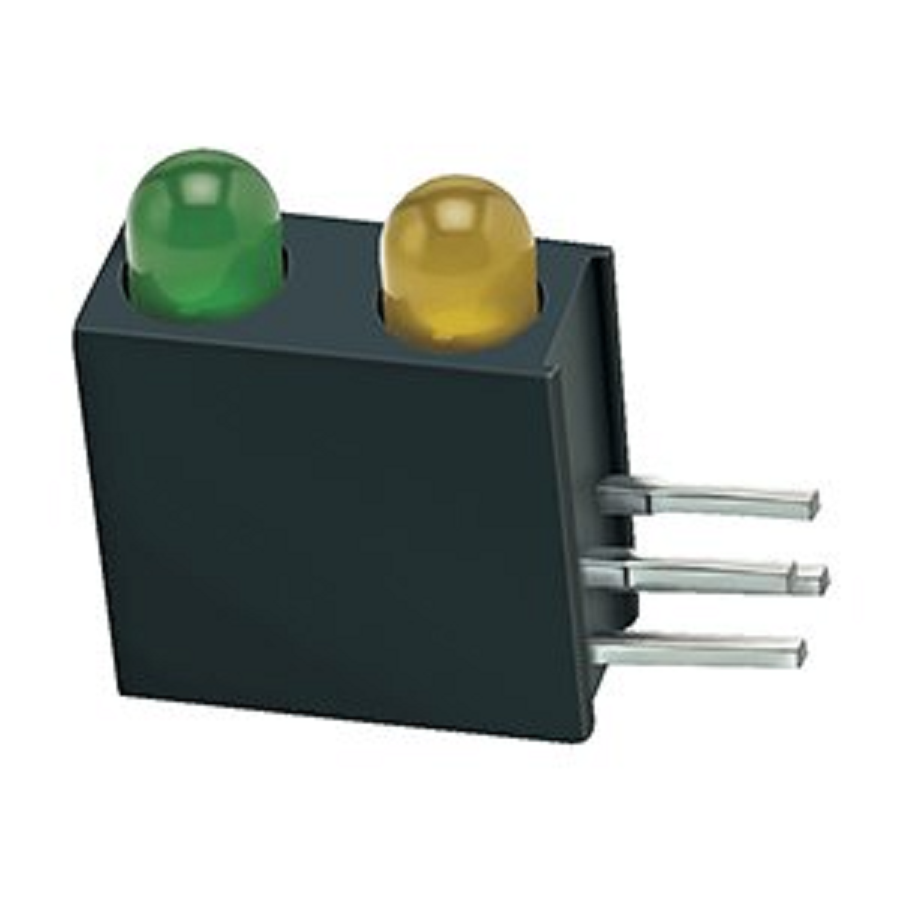

A694B/2SYG/S530-E2
Manufacturer:
Everlight
Mfr.Part #:
A694B/2SYG/S530-E2
Datasheet:
Description:
LEDs Through Hole Brilliant Yellow Green 573 nm 25 mA 2 V
| Parameter | Value |
|---|---|
| Length | 4.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Packaging | Bulk |
| Voltage Rating | 2 V |
| Depth | 11.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Number of Elements | 1 |
| Current | 25 mA |
| Forward Current | 25 mA |
| Forward Voltage | 2 V |
| Color | Green, Yellow |
| Illumination Color | Brilliant Yellow Green |
| Lens Style | Colored, Diffused, Dome, Round |
| Luminous Intensity | 50 mcd |
| Power Dissipation | 60 mW |
| Number of LEDs | 1 |
| Viewing Angle | 60 ° |
| Lens Transparency | Diffused |
| Lens Color | Green Diffused |
| Dominant Wavelength/CCT (K) | 573 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
Stock: 18806
Distributors
pcbx
pcbxUnit Price$0.25018
Ext.Price$0.25018
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25018 | $0.25018 |
| 10 | $0.12509 | $1.25090 |
| 50 | $0.11163 | $5.58150 |
| 100 | $0.09962 | $9.96200 |
| 500 | $0.08829 | $44.14500 |
| 1000 | $0.07824 | $78.24000 |
| 3000 | $0.06934 | $208.02000 |
| 5000 | $0.06145 | $307.25000 |
