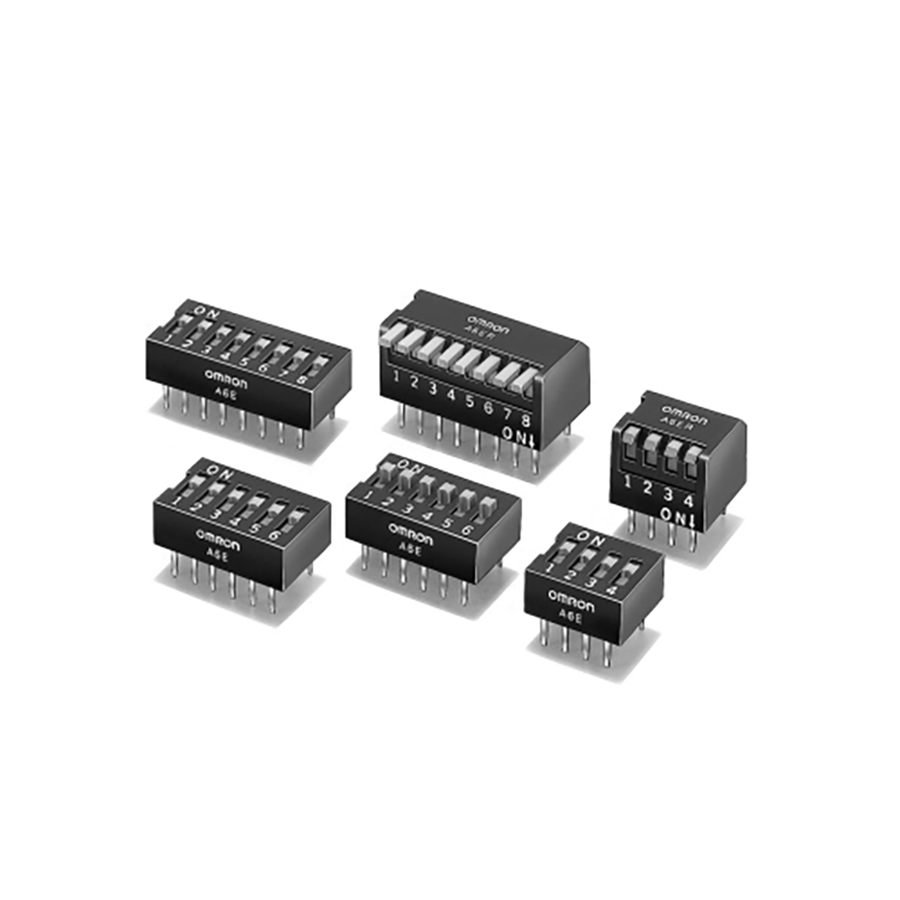

A6E-8104
Manufacturer:
Omron
Mfr.Part #:
A6E-8104
Datasheet:
Description:
DIP Switches Through Hole Number of Positions:8 Current Rating:25 mA Raised
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 21.8694 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 12 |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 1.65 g |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 8 |
| Orientation | Straight |
| Actuator Length | 1 mm |
| Throw Configuration | SPST |
| Number of Positions | 8 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Raised |
| Washable | No |
