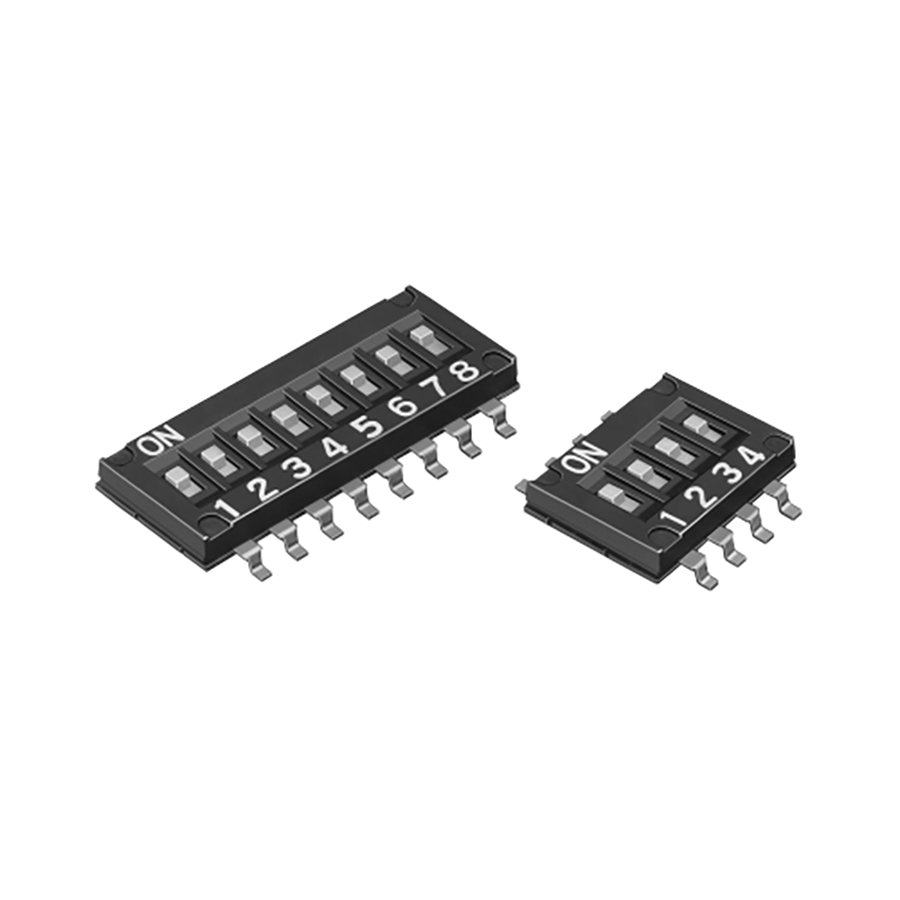

A6H-4102
Manufacturer:
Omron
Mfr.Part #:
A6H-4102
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6.2992 mm |
| Width | 4.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 1.55 mm |
| Circuit Type | SPST |
| Packaging | Reel |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.09 g |
| Ratings | IP40 |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 0 m |
| Number of Poles | 4 |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Washable | Yes |
Stock: 1612
Distributors
pcbx
pcbxUnit Price$1.88341
Ext.Price$1.88341
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.88341 | $1.88341 |
| 10 | $1.55170 | $15.51700 |
| 25 | $1.50810 | $37.70250 |
| 50 | $1.33283 | $66.64150 |
