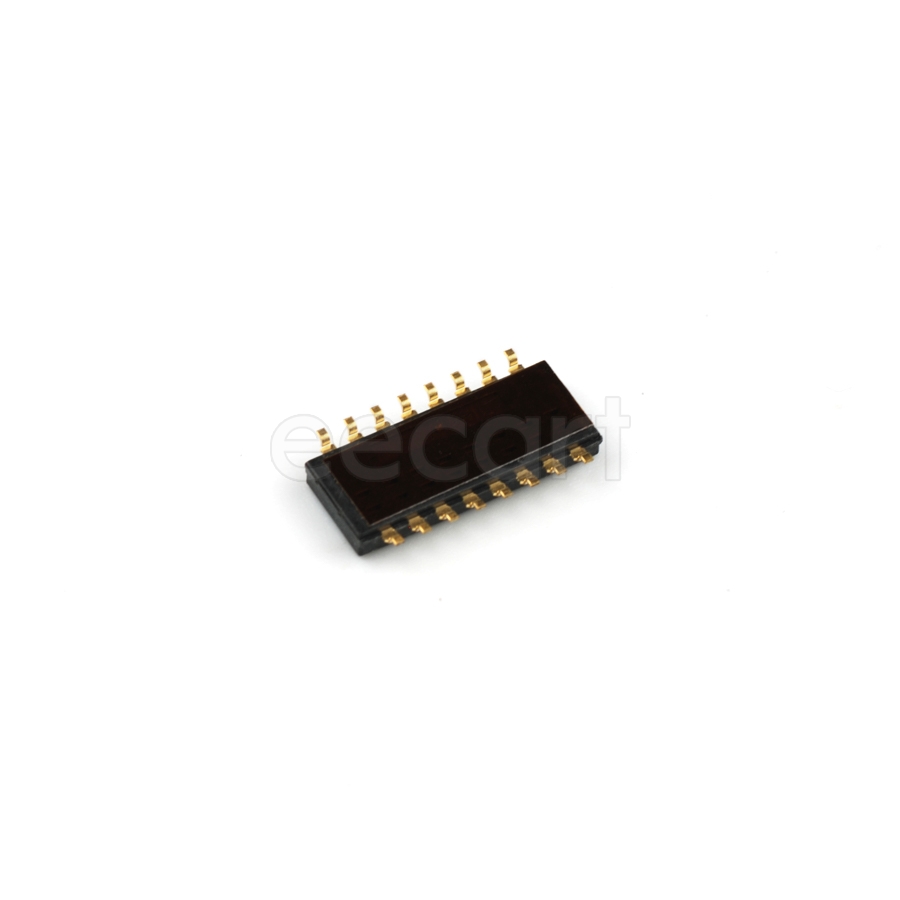

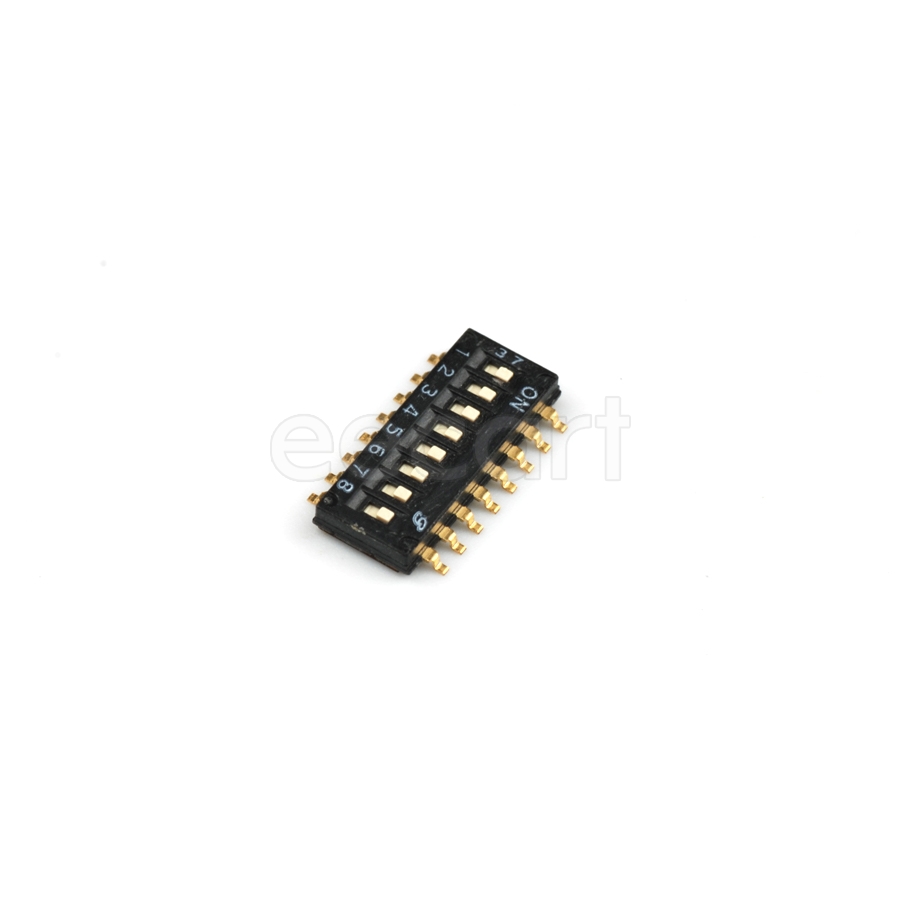

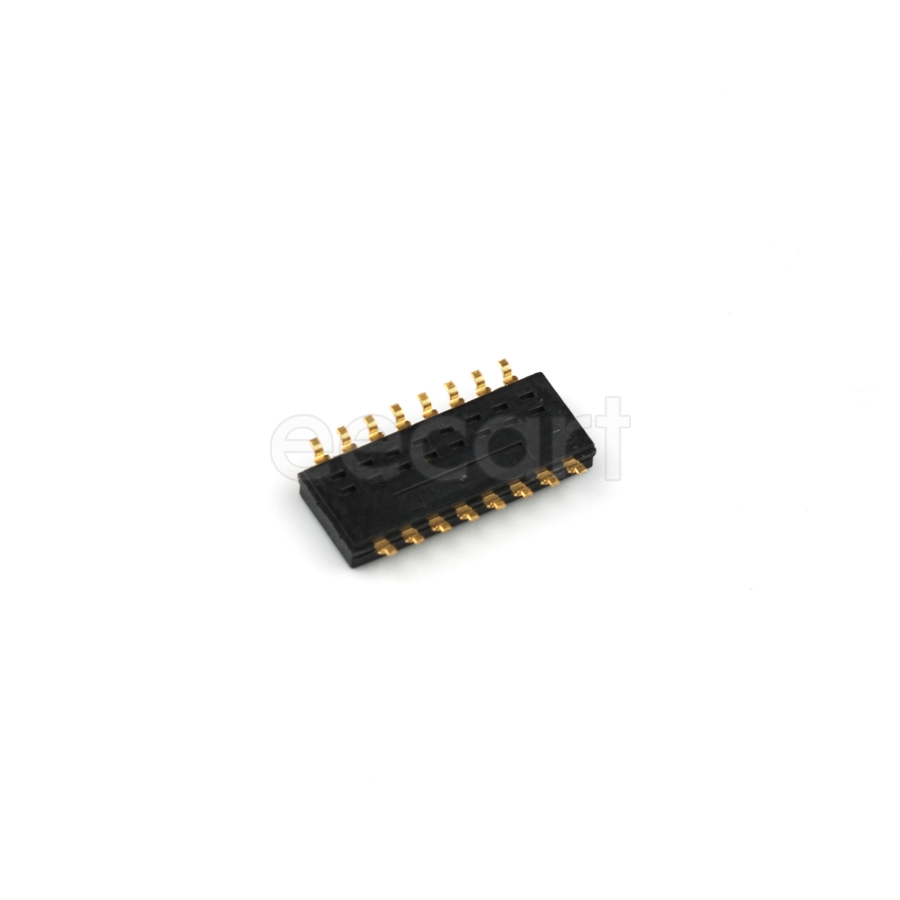

A6H-6101
Manufacturer:
Omron
Mfr.Part #:
A6H-6101
Datasheet:
Description:
DIP Switches SMD/SMT Number of Positions:6 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 8.8392 mm |
| Width | 4.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 12 |
| Height | 1.55 mm |
| Depth | 6.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 0.12 g |
| Ratings | IP40 |
| Lead/Base Style | Gull Wing |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 6 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 0 m |
| Number of Poles | 6 |
| Throw Configuration | SPST |
| Number of Positions | 6 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Operating Force | 490 mN |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide |
| Washable | No |
| Packaging | Tube |
Stock: 2658
Distributors
pcbx
pcbxUnit Price$1.68336
Ext.Price$1.68336
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.68336 | $1.68336 |
| 10 | $1.51408 | $15.14080 |
| 25 | $1.25760 | $31.44000 |
| 50 | $1.19344 | $59.67200 |
| 100 | $1.13255 | $113.25500 |
| 300 | $1.07477 | $322.43100 |
| 500 | $1.01993 | $509.96500 |
