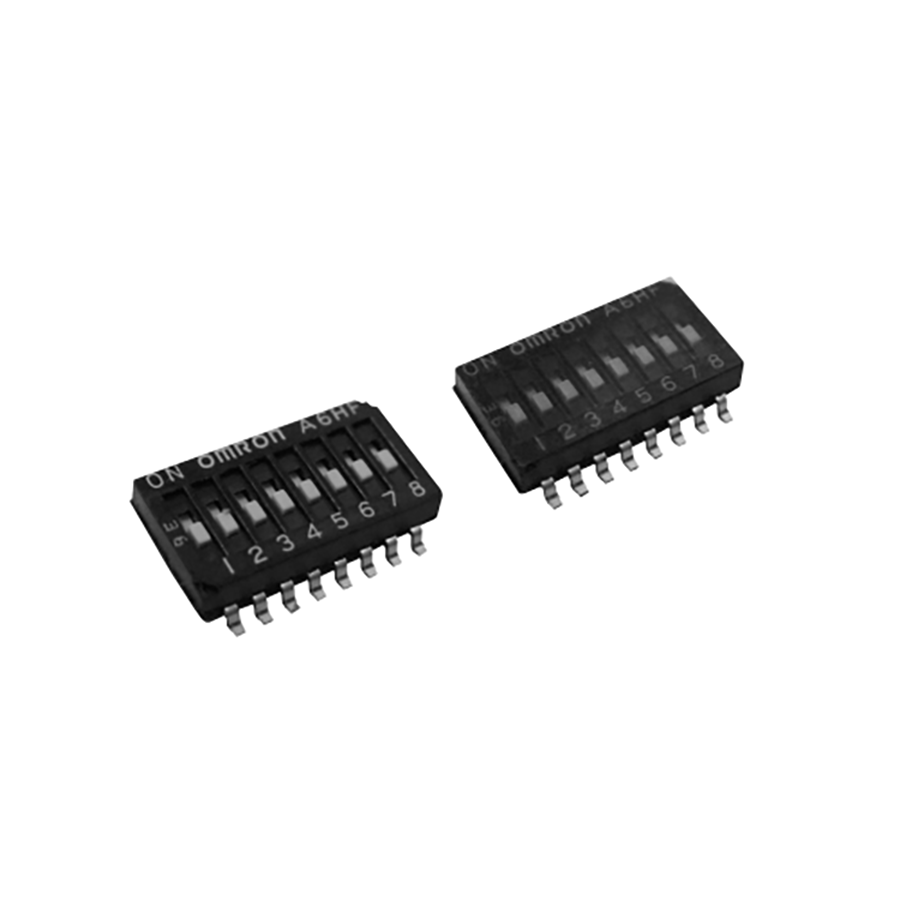

A6HF-4102
Manufacturer:
Omron
Mfr.Part #:
A6HF-4102
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6.1976 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| RoHS | Compliant |
| Weight | 0.13 g |
| Contact Plating | Gold |
| Pitch | 1.27 mm |
| Terminal Pitch | 1.27 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Actuator Type | Slide |
| Washable | Yes |
Stock: 338
Distributors
pcbx
pcbxUnit Price$2.09629
Ext.Price$2.09629
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.09629 | $2.09629 |
| 10 | $1.82699 | $18.26990 |
| 25 | $1.72696 | $43.17400 |
| 50 | $1.64692 | $82.34600 |
| 100 | $1.57059 | $157.05900 |
| 300 | $1.49780 | $449.34000 |
| 500 | $1.42838 | $714.19000 |
| 1000 | $1.36218 | $1362.18000 |
| 3000 | $1.29905 | $3897.15000 |
| 5000 | $1.23880 | $6194.00000 |
