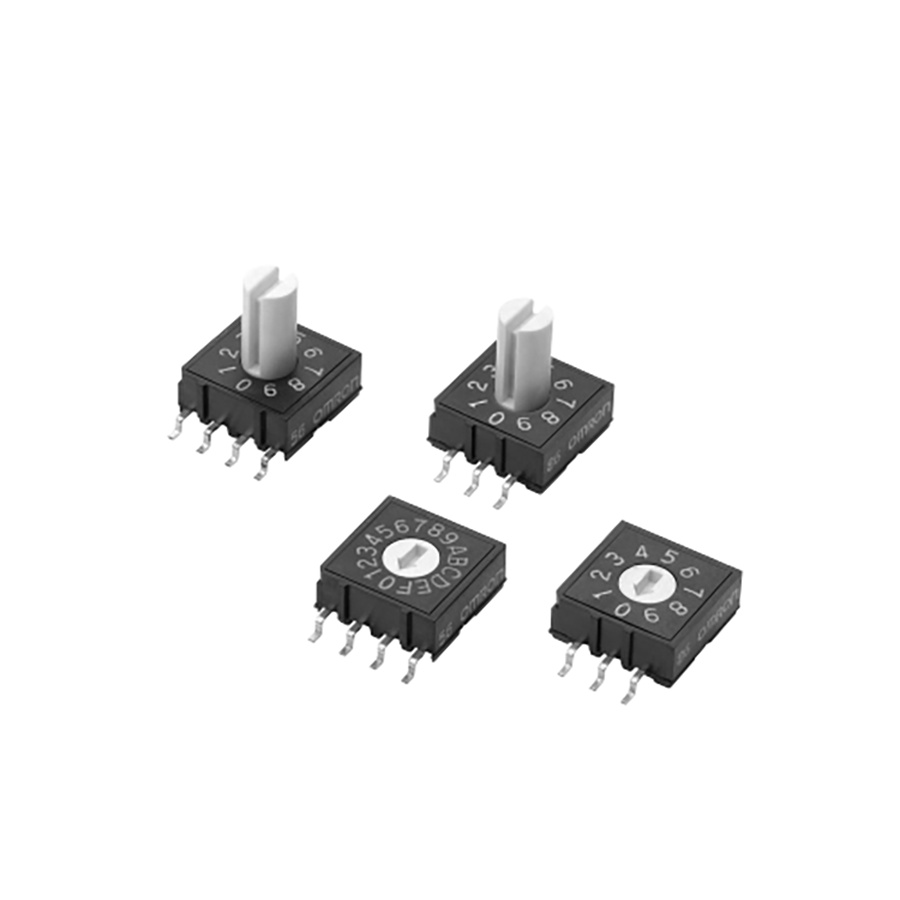

A6RS-162RF
Manufacturer:
Omron
Mfr.Part #:
A6RS-162RF
Datasheet:
Description:
DIP Switches SMD/SMT Hexadecimal Number of Positions:16 Current Rating:25 mA Flatted
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 9.8044 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | Hexadecimal |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 0.6 g |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 0 m |
| Throw Configuration | SP16T, SPST |
| Number of Positions | 16 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 5 kcycles |
| switching current | 25 mA |
| Actuator Type | Flatted |
| Switching Voltage | 24 V |
| Washable | No |
Stock: 21
Distributors
pcbx
pcbxUnit Price$2.20316
Ext.Price$2.20316
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.20316 | $2.20316 |
| 10 | $2.10159 | $21.01590 |
| 25 | $2.00470 | $50.11750 |
| 50 | $1.91228 | $95.61400 |
| 100 | $1.82412 | $182.41200 |
| 300 | $1.74002 | $522.00600 |
| 500 | $1.65980 | $829.90000 |
| 1000 | $1.58333 | $1583.33000 |
