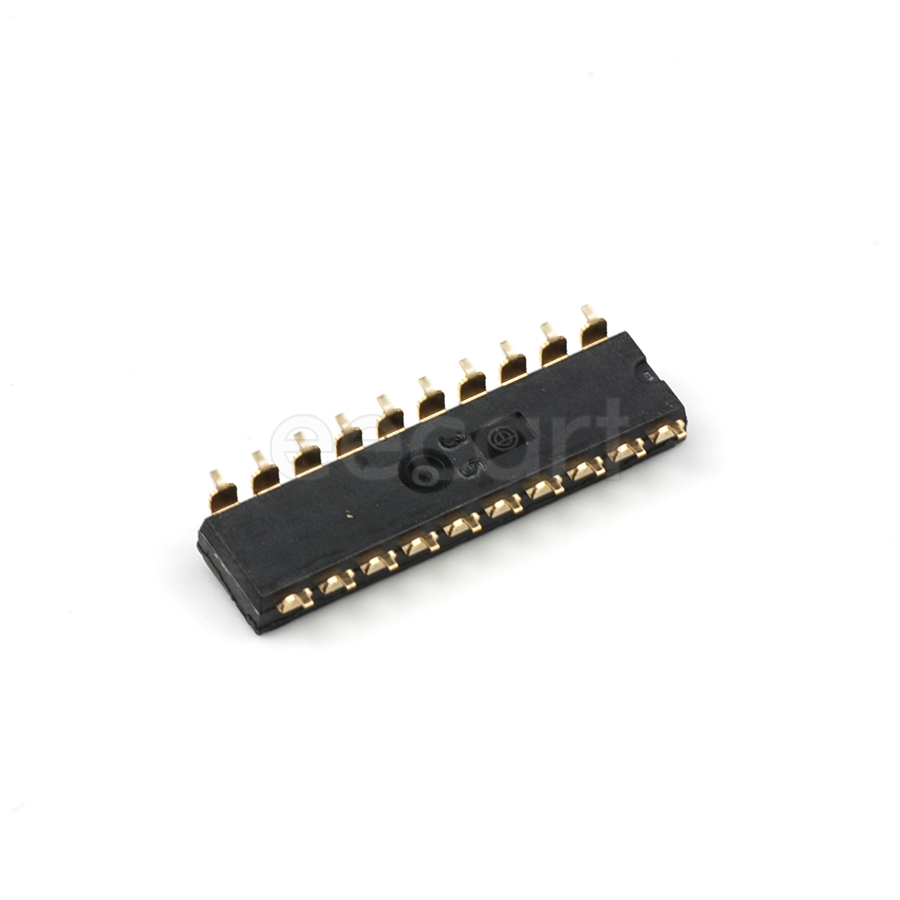

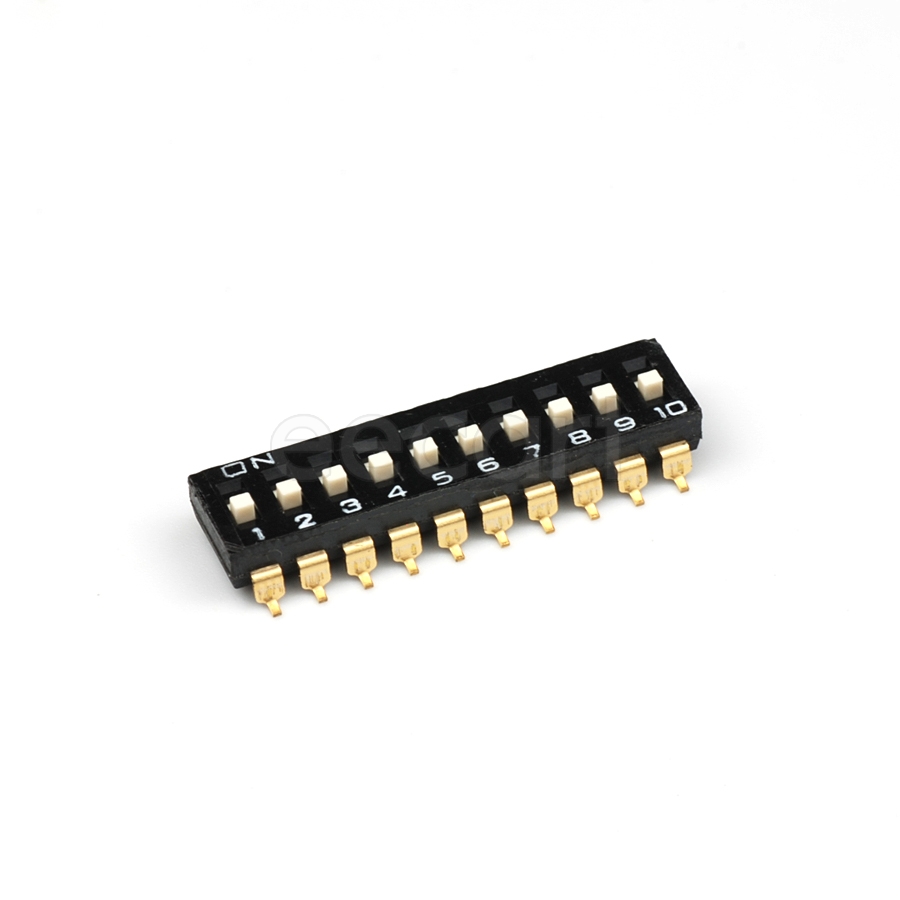

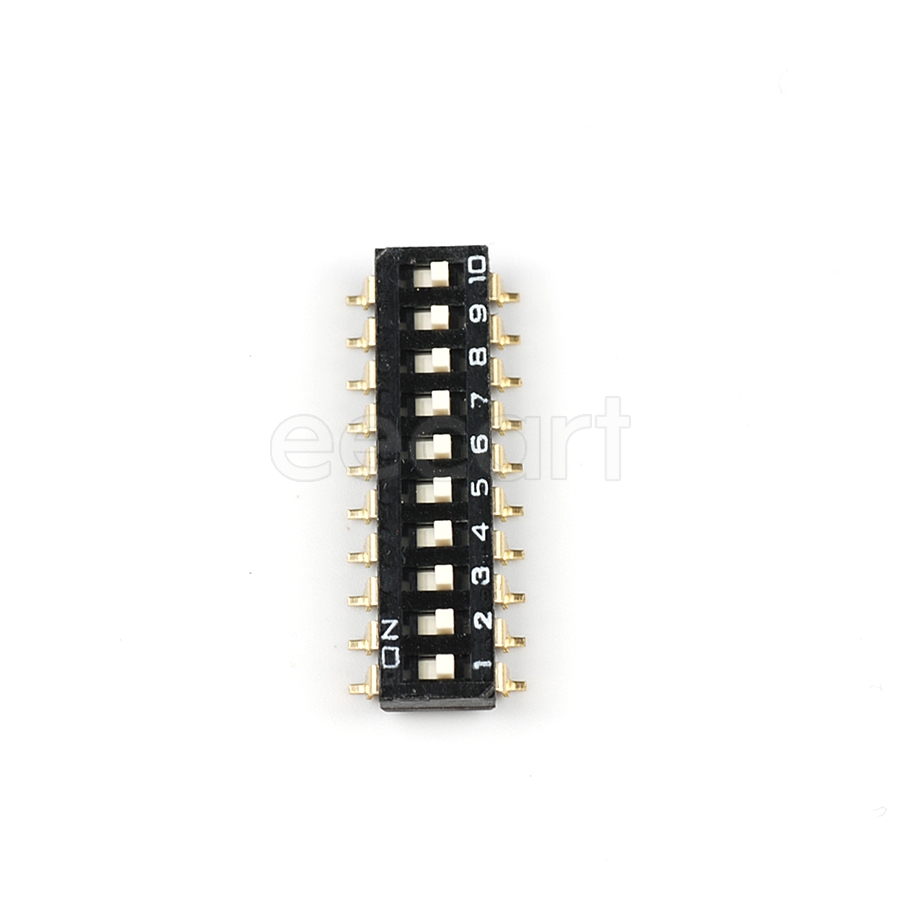

A6S-0104-H
Manufacturer:
Omron
Mfr.Part #:
A6S-0104-H
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:10 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 26.34 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.87 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 10 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 700 µm |
| Throw Configuration | SPST |
| Number of Positions | 10 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide |
| Washable | No |
| Schedule B | 8536509065 |
| Packaging | Tube |
