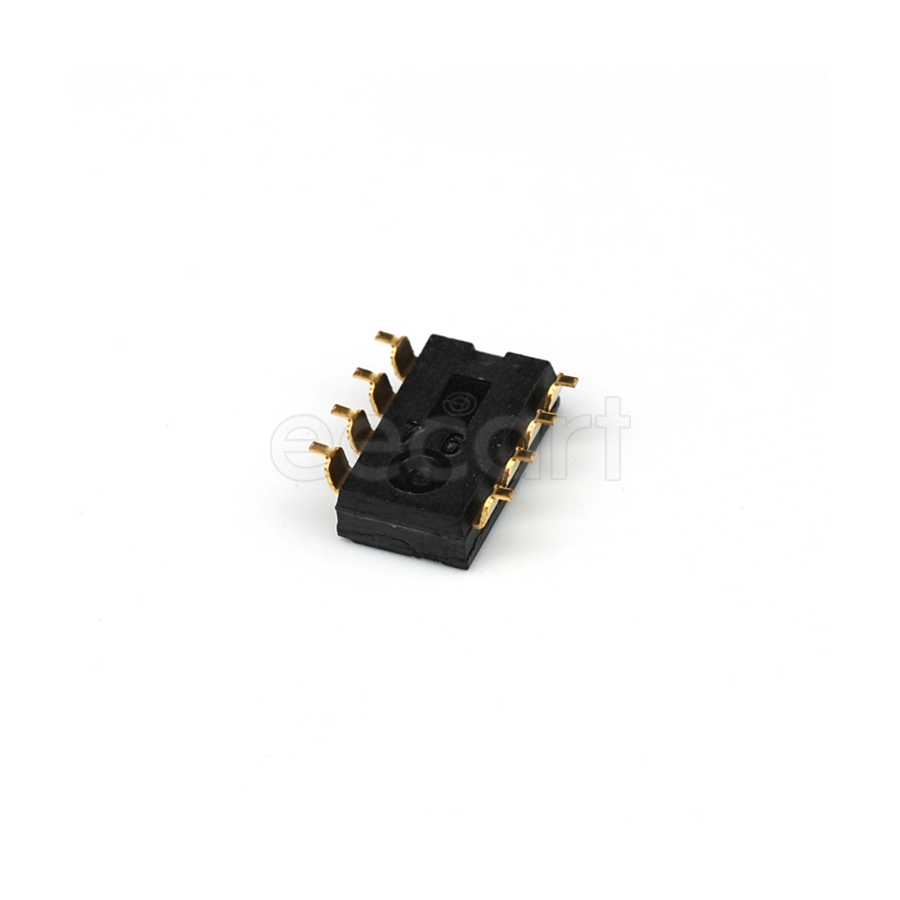

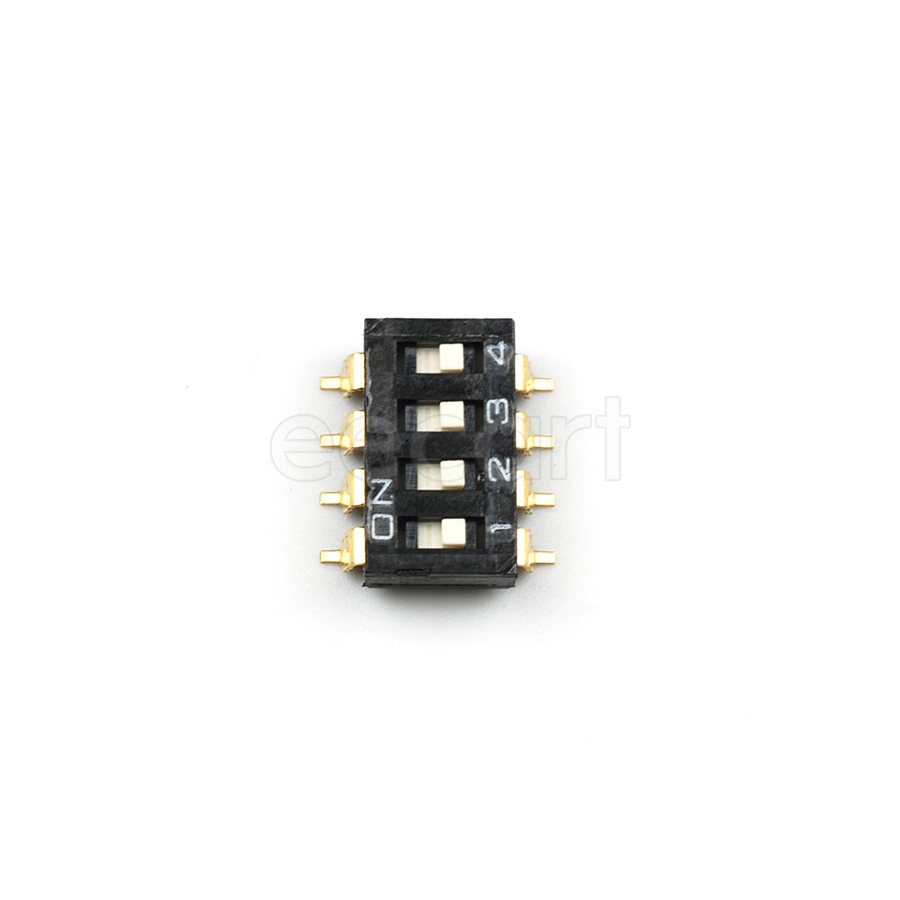

A6S-4101-H
Manufacturer:
Omron
Mfr.Part #:
A6S-4101-H
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide (Standard)
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 11.1 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Height | 3.8 mm |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 9.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.41 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 0 m |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide (Standard) |
| Washable | No |
| Life (Cycles) | 1 kCycles |
Stock: 522
Distributors
pcbx
pcbxUnit Price$0.98916
Ext.Price$0.98916
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.98916 | $0.98916 |
| 10 | $0.88229 | $8.82290 |
| 25 | $0.84467 | $21.11675 |
| 50 | $0.79908 | $39.95400 |
| 100 | $0.75595 | $75.59500 |
| 300 | $0.71515 | $214.54500 |
| 500 | $0.67655 | $338.27500 |
| 1000 | $0.64004 | $640.04000 |
| 3000 | $0.60550 | $1816.50000 |
| 5000 | $0.57280 | $2864.00000 |
