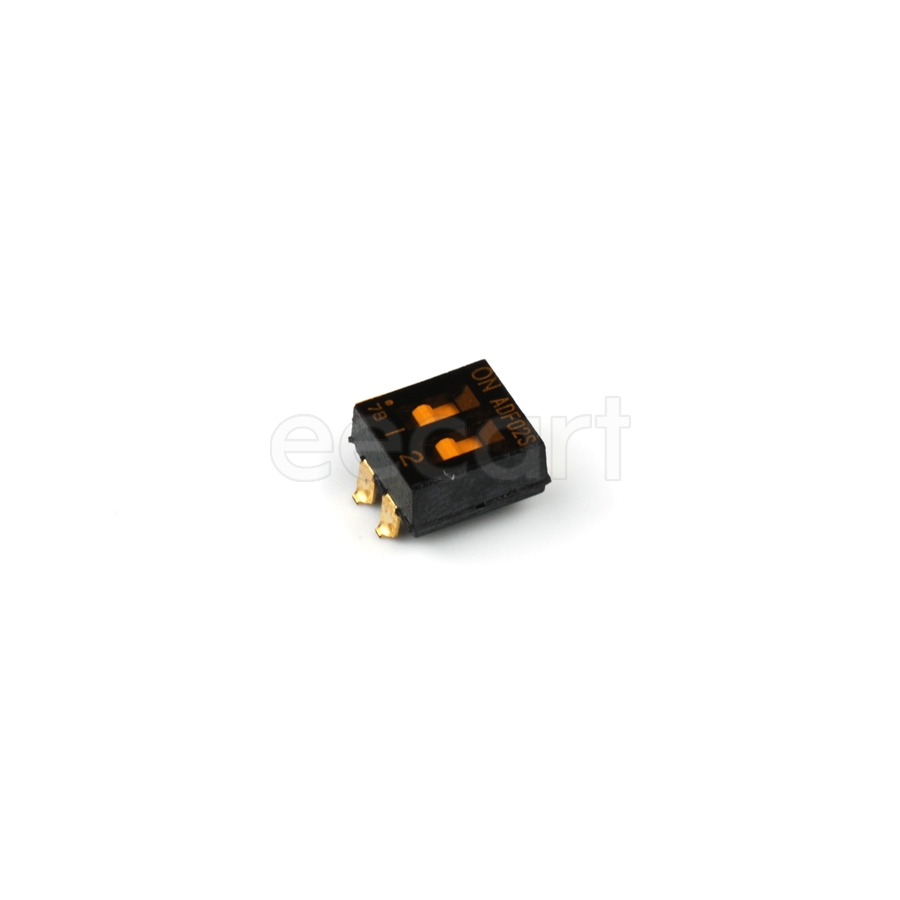

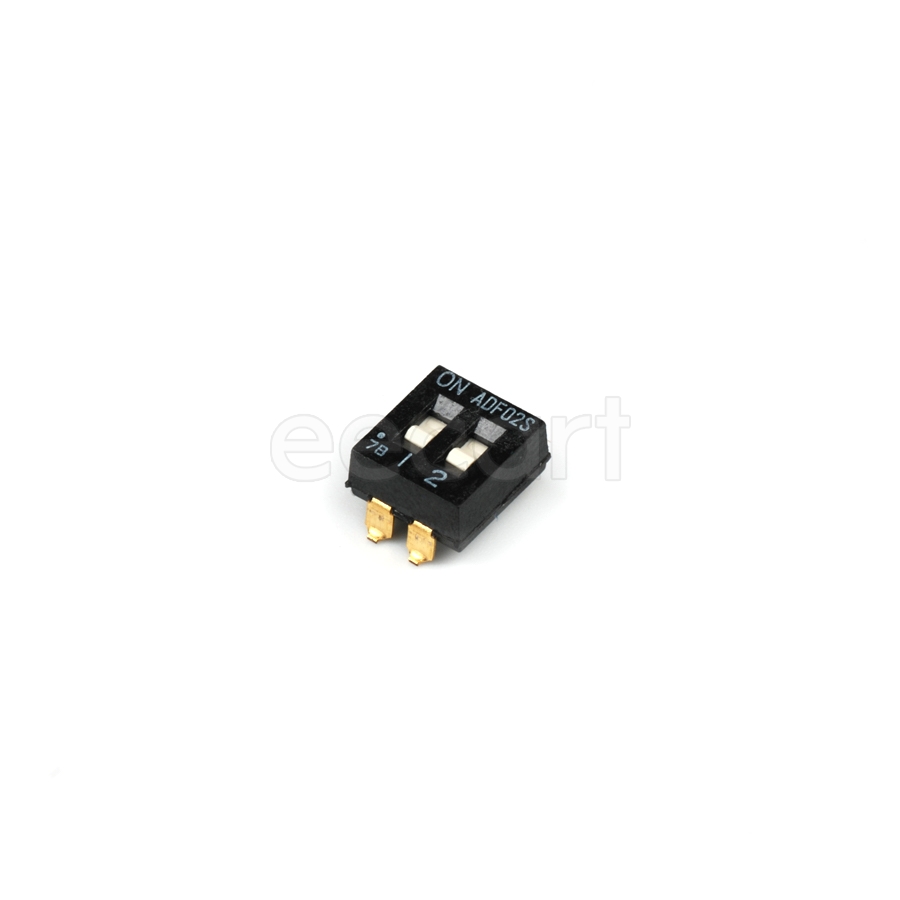

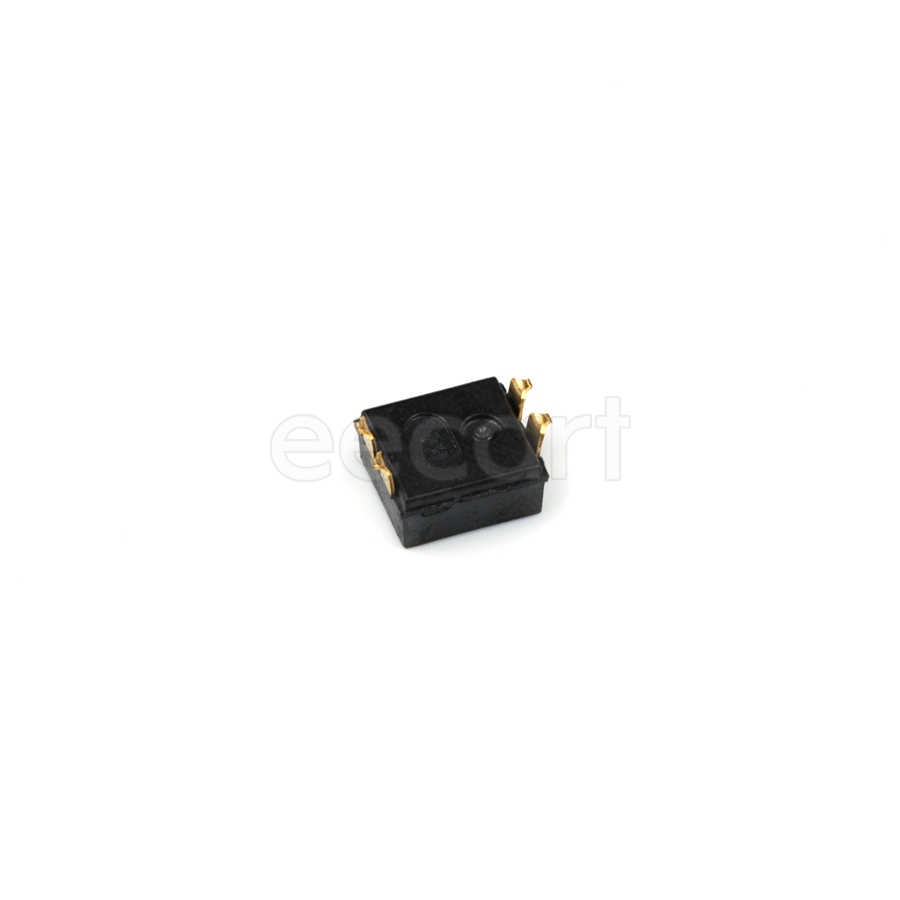

A6SN-2104
Manufacturer:
Omron
Mfr.Part #:
A6SN-2104
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:2 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 7.0104 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 4.55 mm |
| Circuit Type | SPST |
| RoHS | Compliant |
| Weight | 0.3 g |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 1 mm |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide |
| Washable | Yes |
| Life (Cycles) | 1 kCycles |
| Packaging | Tube |
Stock: 356
Distributors
pcbx
pcbxUnit Price$1.23880
Ext.Price$1.23880
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.23880 | $1.23880 |
| 10 | $0.85750 | $8.57500 |
| 25 | $0.83270 | $20.81750 |
| 50 | $0.79324 | $39.66200 |
| 100 | $0.75565 | $75.56500 |
| 300 | $0.71985 | $215.95500 |
