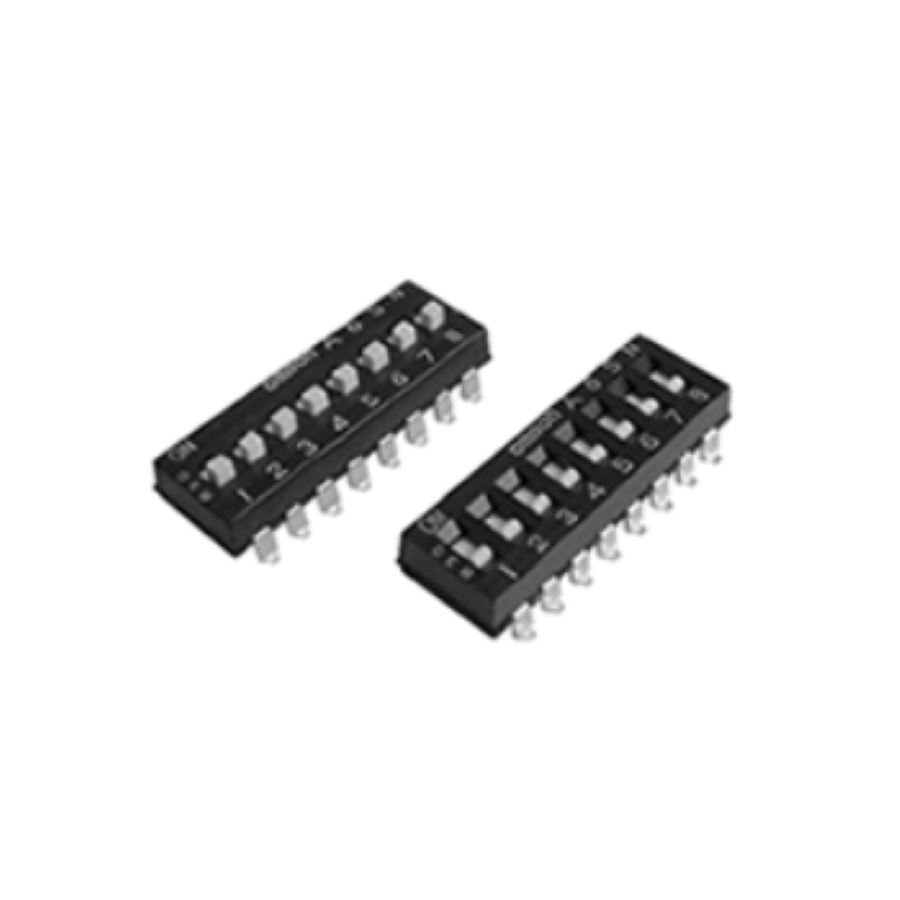

A6SN-4104
Manufacturer:
Omron
Mfr.Part #:
A6SN-4104
Datasheet:
Description:
DIP Switches SMD/SMT SPST Number of Positions:4 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 12.0904 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Height | 6 mm |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 9.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.55 g |
| Contact Plating | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 1 mm |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPST |
| Number of Positions | 4 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide |
| Washable | Yes |
| Life (Cycles) | 1 kCycles |
Stock: 2108
Distributors
pcbx
pcbxUnit Price$2.02762
Ext.Price$2.02762
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.02762 | $2.02762 |
| 10 | $1.70191 | $17.01910 |
| 25 | $1.60399 | $40.09975 |
| 50 | $1.51170 | $75.58500 |
| 100 | $1.42472 | $142.47200 |
| 300 | $1.34275 | $402.82500 |
| 500 | $1.26549 | $632.74500 |
| 1000 | $1.19268 | $1192.68000 |
| 3000 | $1.12406 | $3372.18000 |
| 5000 | $1.05938 | $5296.90000 |
