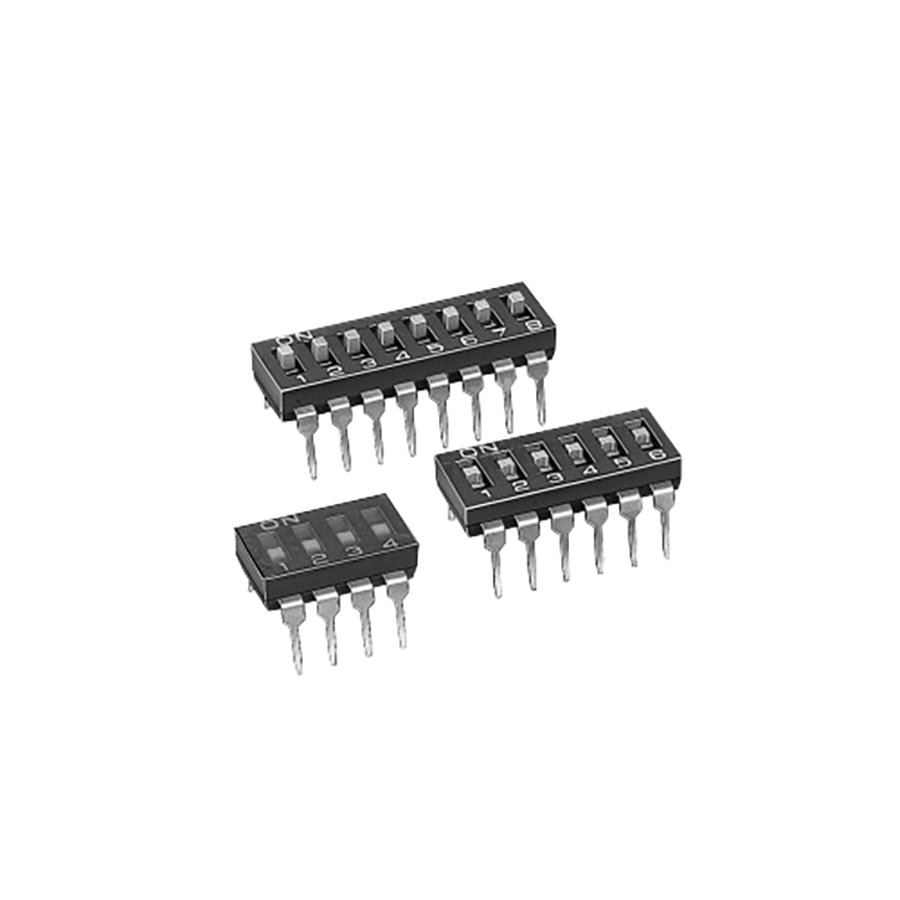

A6T-1104
Manufacturer:
Omron
Mfr.Part #:
A6T-1104
Datasheet:
Description:
DIP Switches Through Hole SPST Number of Positions:1 Current Rating:25 mA Slide
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 3.48 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST |
| Packaging | Tube |
| Depth | 7.62 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Gold |
| Pitch | 2.54 mm |
| Terminal Pitch | 2.54 mm |
| Current Rating | 25 mA |
| Max Current Rating | 25 mA |
| Max Voltage Rating (DC) | 24 V |
| Number of Circuits | 1 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 600 µm |
| Throw Configuration | SPST |
| Number of Positions | 1 |
| Contact Resistance | 200 mΩ |
| Electrical Life | 1 kcycles |
| Mechanical Life | 1 kcycles |
| Contact Current Rating | 25 mA |
| Actuator Type | Slide |
| Washable | No |
