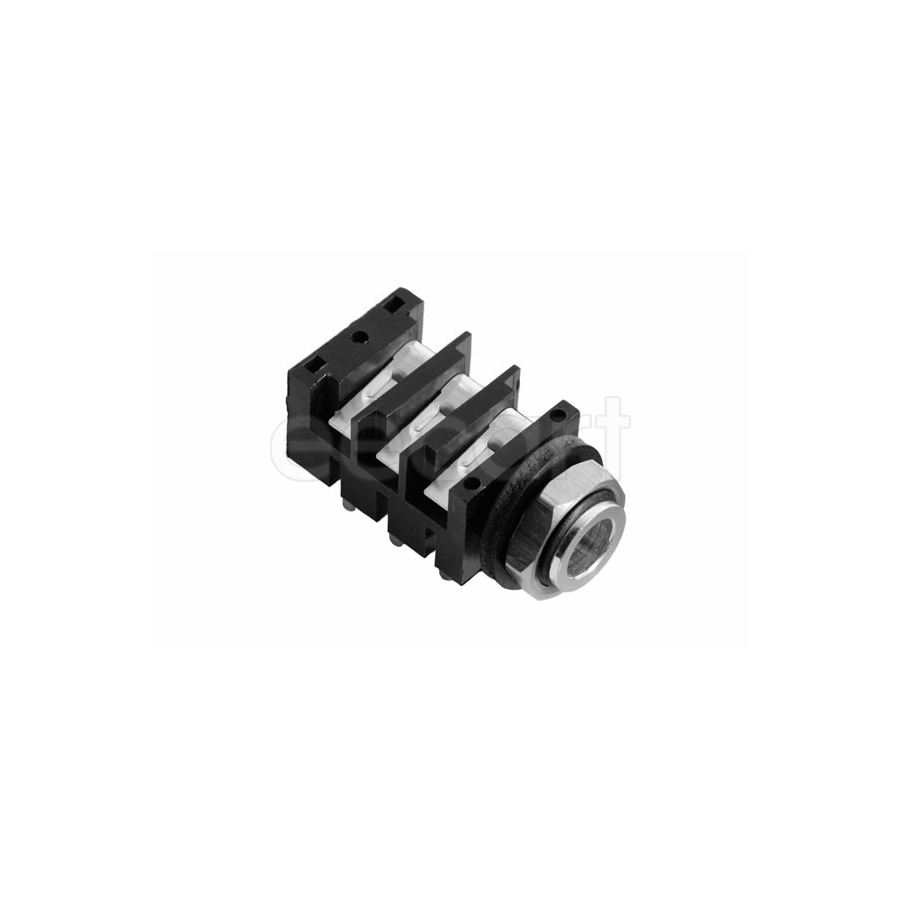

ACJS-MHDR
Manufacturer:
Amphenol
Mfr.Part #:
ACJS-MHDR
Datasheet:
Description:
Audio / Video Connectors Through Hole Female Number of Positions:3 Right Angle Phone Jack
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Height | 17.4 mm |
| Packaging | Bulk |
| Voltage Rating | 1000 V (1 kV) |
| Depth | 33.5 mm |
| RoHS | Compliant |
| Manufacturer Package Identifier | ACJS-MHDR |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass, Copper, Tin |
| Number of Terminals | 3 |
| Current Rating | 10 A |
| Max Current Rating | 10 A |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Number of Contacts | 3 |
| Body Material | Plastic |
| Connector Type | Phone Jack |
| Housing Material | Polybutylene |
| Number of Ports | 1 |
| Number of Positions | 3 |
Stock: 1848
Distributors
pcbx
pcbxUnit Price$1.20117
Ext.Price$1.20117
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20117 | $1.20117 |
| 10 | $1.01993 | $10.19930 |
| 25 | $0.96548 | $24.13700 |
| 50 | $0.91392 | $45.69600 |
| 100 | $0.85151 | $85.15100 |
| 300 | $0.80944 | $242.83200 |
| 500 | $0.76944 | $384.72000 |
| 1000 | $0.72583 | $725.83000 |
