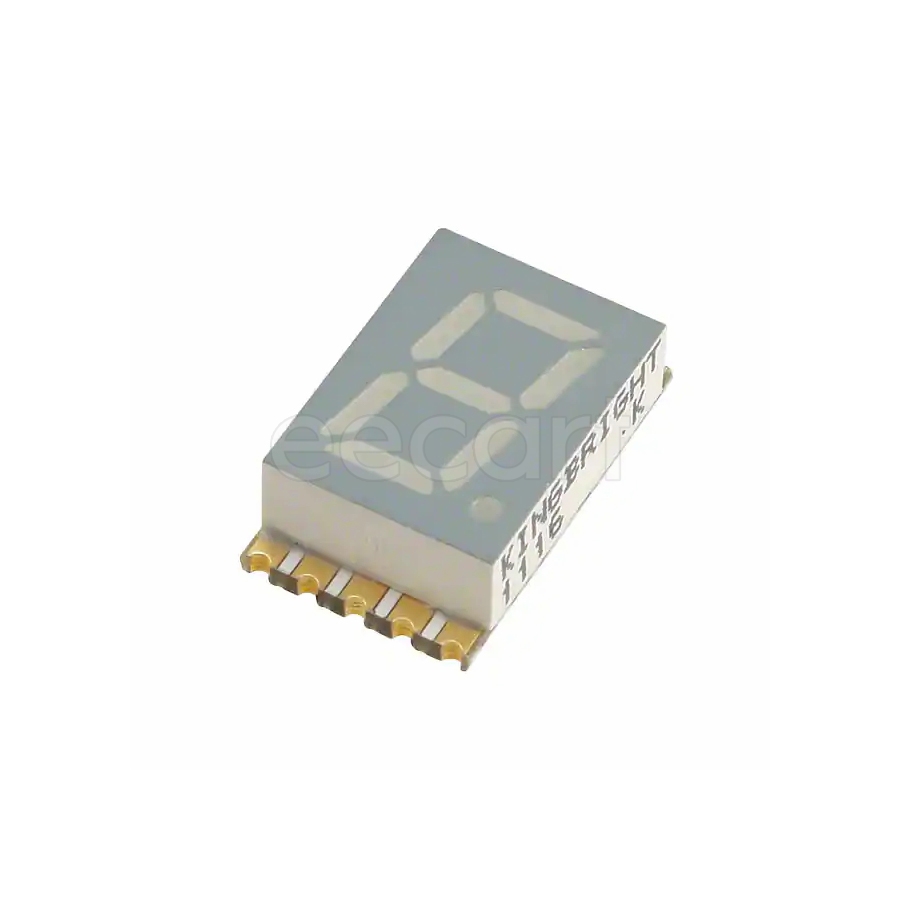

ACSA03-41EWA-F01
Manufacturer:
Kingbright
Mfr.Part #:
ACSA03-41EWA-F01
Datasheet:
Description:
LED Displays SMD/SMT 7-Segment 4.22 mm x 7.62 mm Number of Characters:1
| Parameter | Value |
|---|---|
| Width | 7.2898 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.0076 mm |
| RoHS | Compliant |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Max Power Dissipation | 75 mW |
| Color | Red |
| Illumination Color | Red |
| Luminous Intensity | 4.21 mcd |
| Element Configuration | Common Anode |
| Wavelength | 625 nm |
| power consumption | 75 mW |
| Test Current | 20 mA |
| Character Width | 7.62 mm |
| Number of Characters | 1 |
| Schedule B | 8531200040 |
| Character Size | 4.22 mm x 7.62 mm |
| Display Type | 7-Segment |
| Packaging | Reel |
Stock: 781
Distributors
pcbx
pcbxUnit Price$2.01507
Ext.Price$2.01507
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.01507 | $2.01507 |
| 10 | $1.46450 | $14.64500 |
| 25 | $1.34938 | $33.73450 |
| 50 | $1.24331 | $62.16550 |
| 100 | $1.14560 | $114.56000 |
| 300 | $1.06558 | $319.67400 |
| 500 | $0.99115 | $495.57500 |
| 1000 | $0.92191 | $921.91000 |
| 3000 | $0.85750 | $2572.50000 |
