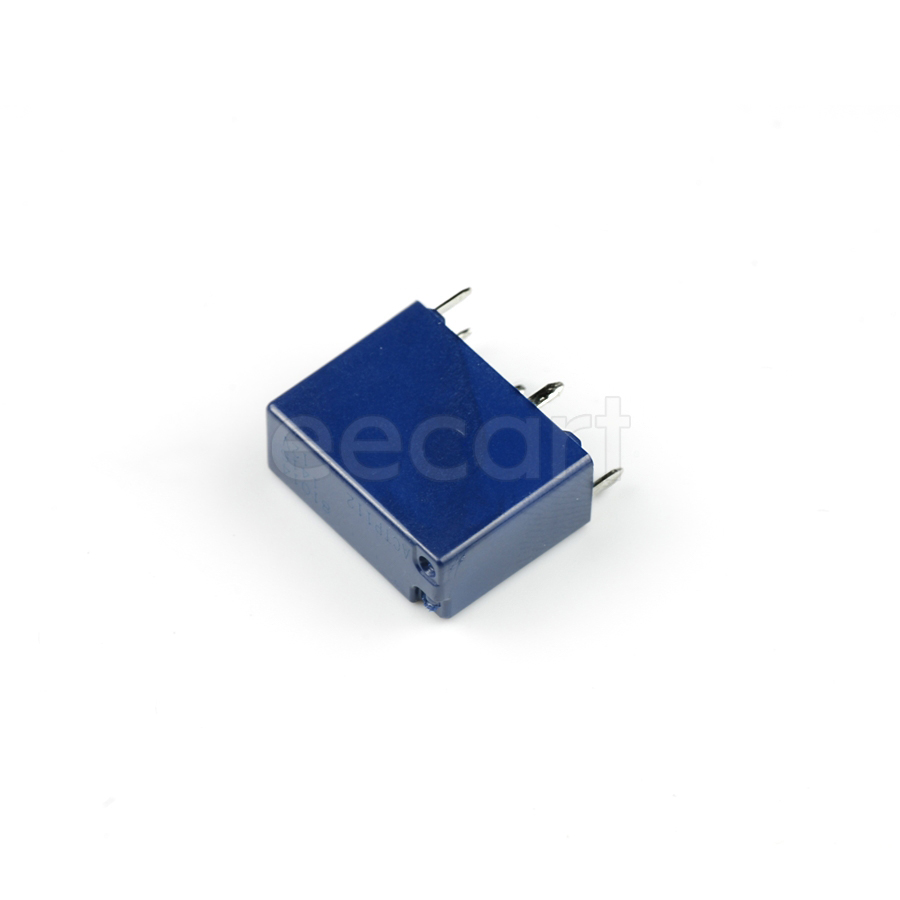

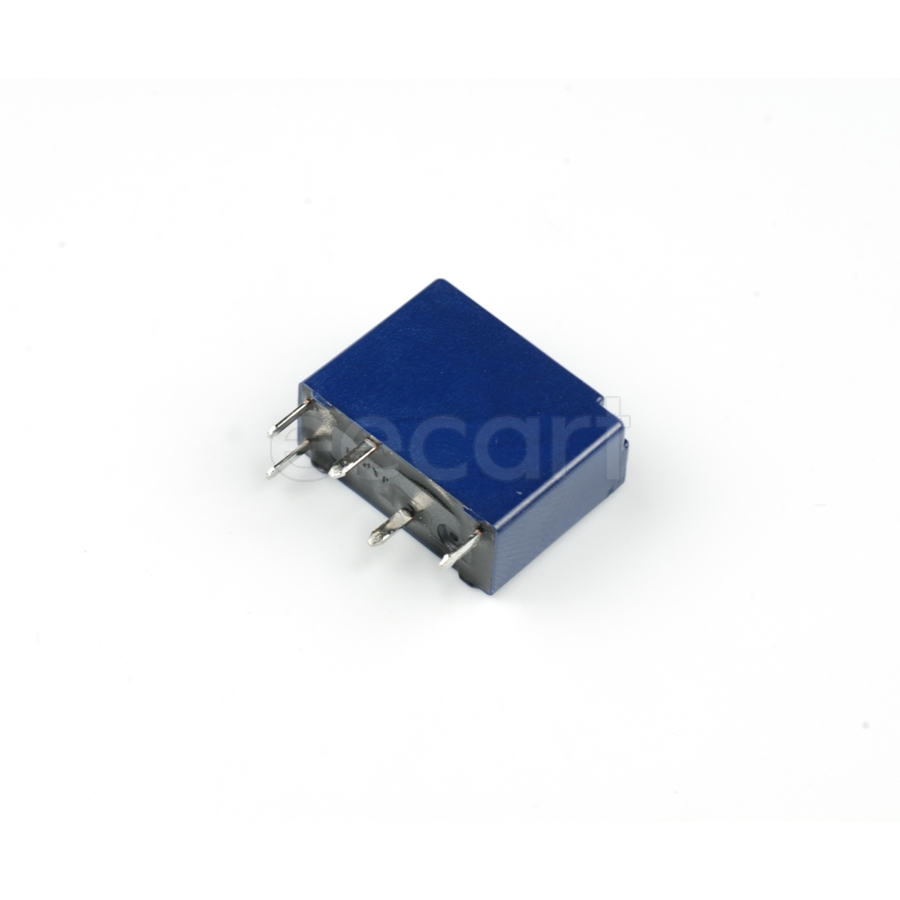

ACTP112
Manufacturer:
Panasonic
Mfr.Part #:
ACTP112
Datasheet:
Description:
Power Relays Through Hole 83.3 mA 144 Ω 12 V
| Parameter | Value |
|---|---|
| Length | 17.4 mm |
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.5 mm |
| Packaging | Tube |
| Depth | 14 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 40 A |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPDT |
| Coil Voltage (DC) | 12 V |
| Coil Current | 83.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 144 Ω |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 30 A |
| switching current | 30 A |
| Termination Style | PC Pin |
| Switching Voltage | 14 VDC |
| Coil Power | 1 W |
| Schedule B | 8536410050 |
| Must Operate Voltage | 7.2 V |
| Must Release Voltage | 1 V |
Stock: 927
Distributors
pcbx
pcbxUnit Price$1.75859
Ext.Price$1.75859
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.75859 | $1.75859 |
| 10 | $1.57050 | $15.70500 |
| 25 | $1.48929 | $37.23225 |
| 50 | $1.43970 | $71.98500 |
| 100 | $1.38926 | $138.92600 |
| 300 | $1.33831 | $401.49300 |
| 500 | $1.28923 | $644.61500 |
| 1000 | $1.24563 | $1245.63000 |
