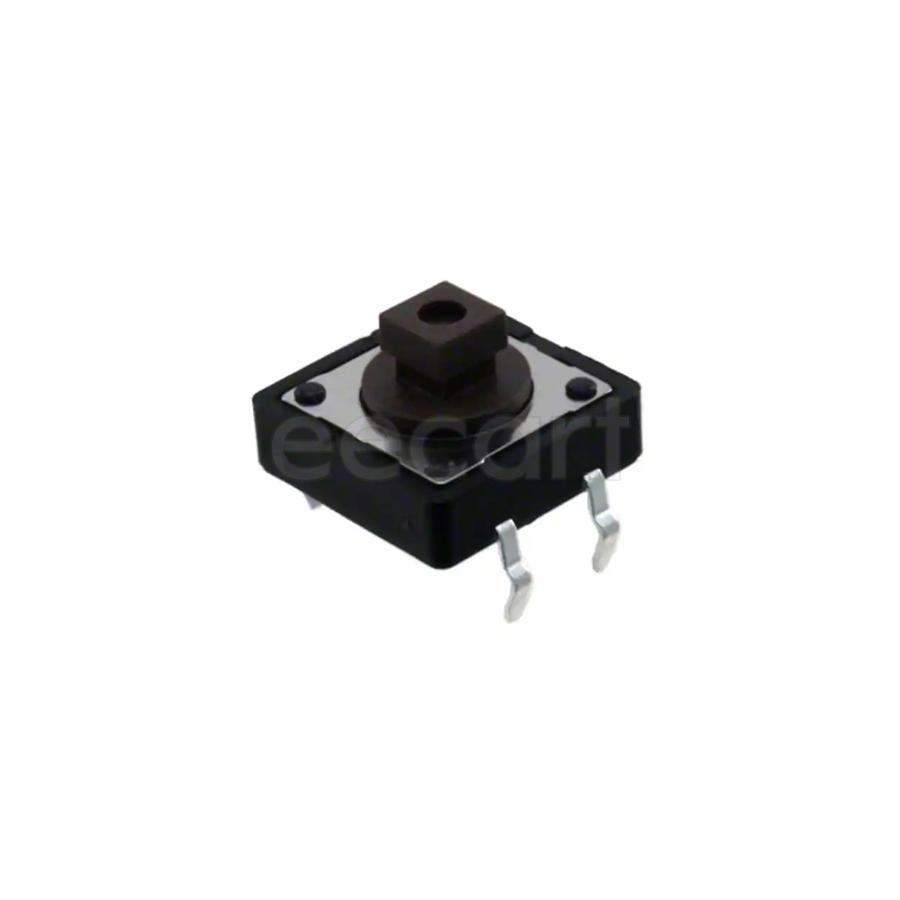

ADTS24NV
Manufacturer:
Apem
Mfr.Part #:
ADTS24NV
Datasheet:
Description:
Tactile Switches Through Hole OFF - (ON) 160 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Brown |
| Actuator Length | 3.8 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 160 gf |
| Switch Travel | 350 µm |
| Actuator Material | Nylon, Polyamide |
| Actuator Type | Plunger for Cap |
| Mounting Direction | Straight |
| Cap Color | Brown |
Stock: 1032
Distributors
pcbx
pcbxUnit Price$0.59417
Ext.Price$0.59417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.59417 | $0.59417 |
| 10 | $0.51040 | $5.10400 |
| 25 | $0.47705 | $11.92625 |
| 50 | $0.45203 | $22.60150 |
| 100 | $0.42832 | $42.83200 |
| 300 | $0.40049 | $120.14700 |
| 500 | $0.37446 | $187.23000 |
| 1000 | $0.35394 | $353.94000 |
| 3000 | $0.32959 | $988.77000 |
| 5000 | $0.30692 | $1534.60000 |
