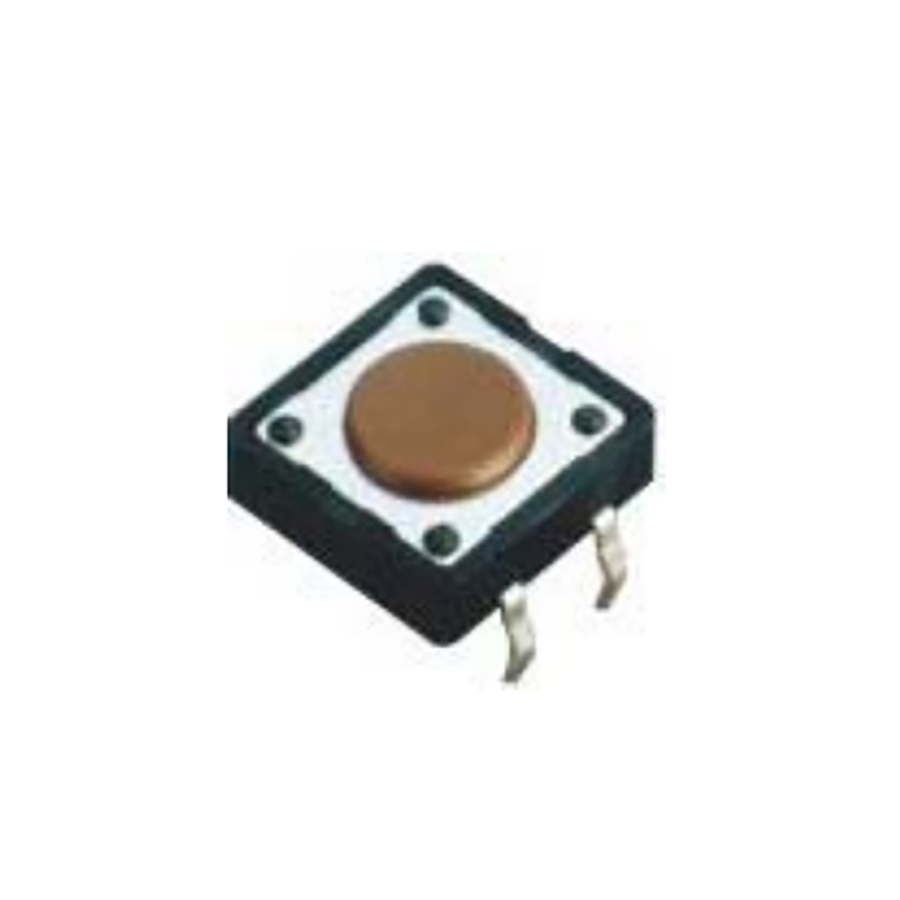

ADTS24RV
Manufacturer:
Apem
Mfr.Part #:
ADTS24RV
Datasheet:
Description:
Tactile Switches Through Hole Off-Mom 260 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Tube |
| Voltage Rating | 12 V |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black, Red |
| Actuator Length | 3.8 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 260 gf |
| Switch Travel | 350 µm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 0.05 A |
| Actuator Type | Plunger for Cap |
| Mounting Direction | Straight |
| Cap Color | Red |
Stock: 1590
Distributors
pcbx
pcbxUnit Price$0.60700
Ext.Price$0.60700
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60700 | $0.60700 |
| 10 | $0.53006 | $5.30060 |
| 25 | $0.36677 | $9.16925 |
| 50 | $0.35550 | $17.77500 |
| 100 | $0.34457 | $34.45700 |
| 300 | $0.33398 | $100.19400 |
| 500 | $0.32371 | $161.85500 |
| 1000 | $0.31376 | $313.76000 |
| 3000 | $0.29481 | $884.43000 |
| 5000 | $0.27700 | $1385.00000 |
