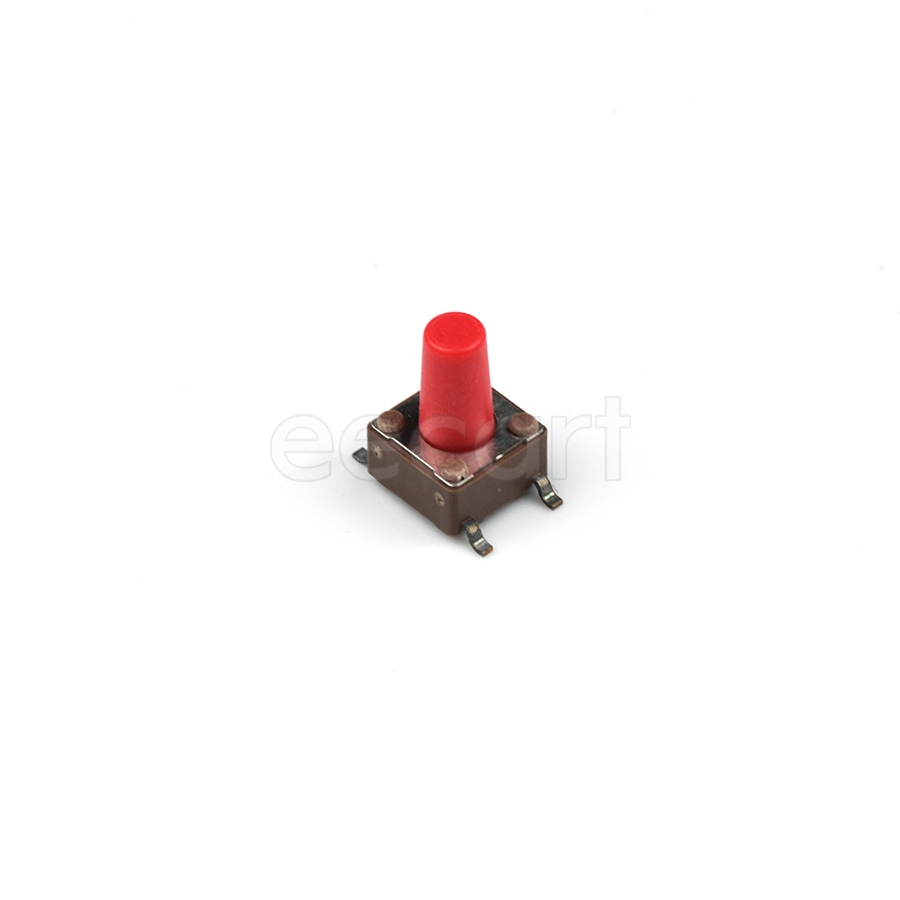

ADTSM65RVTR
Manufacturer:
Apem
Mfr.Part #:
ADTSM65RVTR
Datasheet:
Description:
Tactile Switches SMD/SMT Off-Mom 260 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 260 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mounting Direction | Straight |
| Cap Color | Red |
| Actuator Type | Round |
| Packaging | Reel |
| Color | Black, Red |
Stock: 1422
Distributors
pcbx
pcbxUnit Price$0.39413
Ext.Price$0.39413
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.39413 | $0.39413 |
| 10 | $0.34454 | $3.44540 |
| 25 | $0.32146 | $8.03650 |
| 50 | $0.30342 | $15.17100 |
| 100 | $0.28640 | $28.64000 |
| 300 | $0.25985 | $77.95500 |
| 500 | $0.23576 | $117.88000 |
| 1000 | $0.21390 | $213.90000 |
| 3000 | $0.19407 | $582.21000 |
