ADTSM66NVTR
Manufacturer:
Apem
Mfr.Part #:
ADTSM66NVTR
Datasheet:
Description:

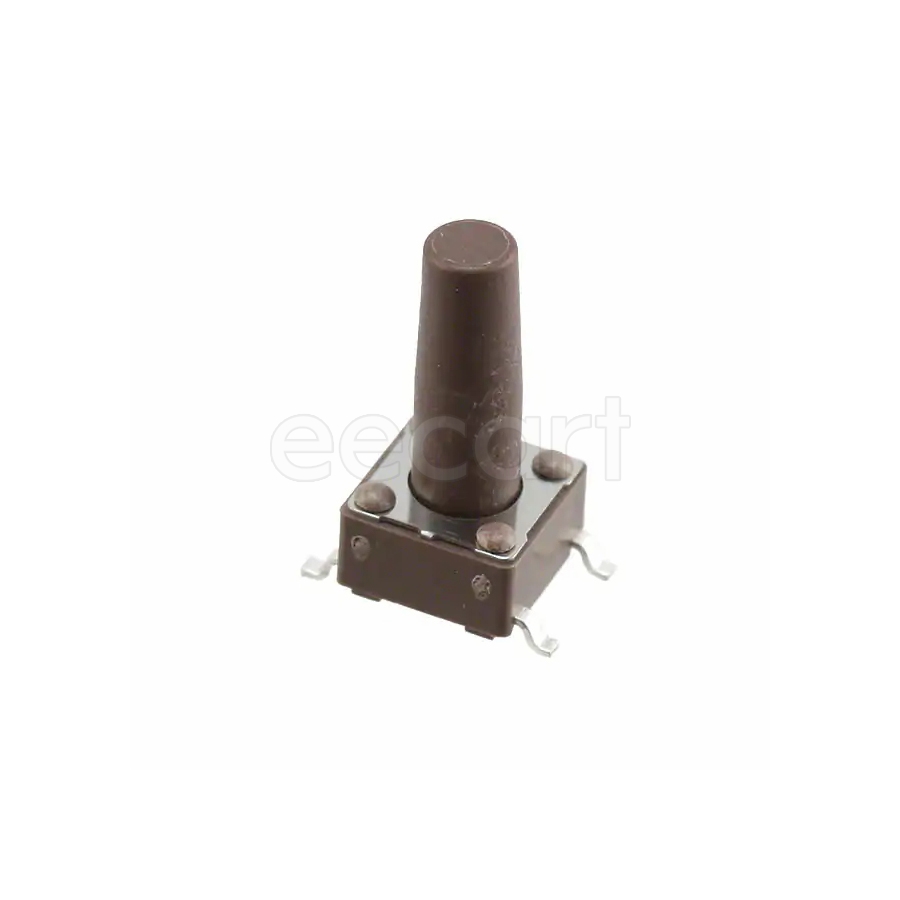

Tactile Switches SMD/SMT SPST-NO Off-Mom 160 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Voltage Rating | 12 V |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 160 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Contact Current Rating | 0.05 A |
| Mounting Direction | Straight |
| Cap Color | Brown |
| Color | Black, Brown |
| Actuator Type | Standard |
Stock: 733
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.32316 | $3.23160 |
| 25 | $0.29324 | $7.33100 |
| 50 | $0.28013 | $14.00650 |
| 100 | $0.26760 | $26.76000 |
| 300 | $0.24828 | $74.48400 |
| 500 | $0.23036 | $115.18000 |
| 1000 | $0.21373 | $213.73000 |
| 3000 | $0.20678 | $620.34000 |
| 5000 | $0.20006 | $1000.30000 |
