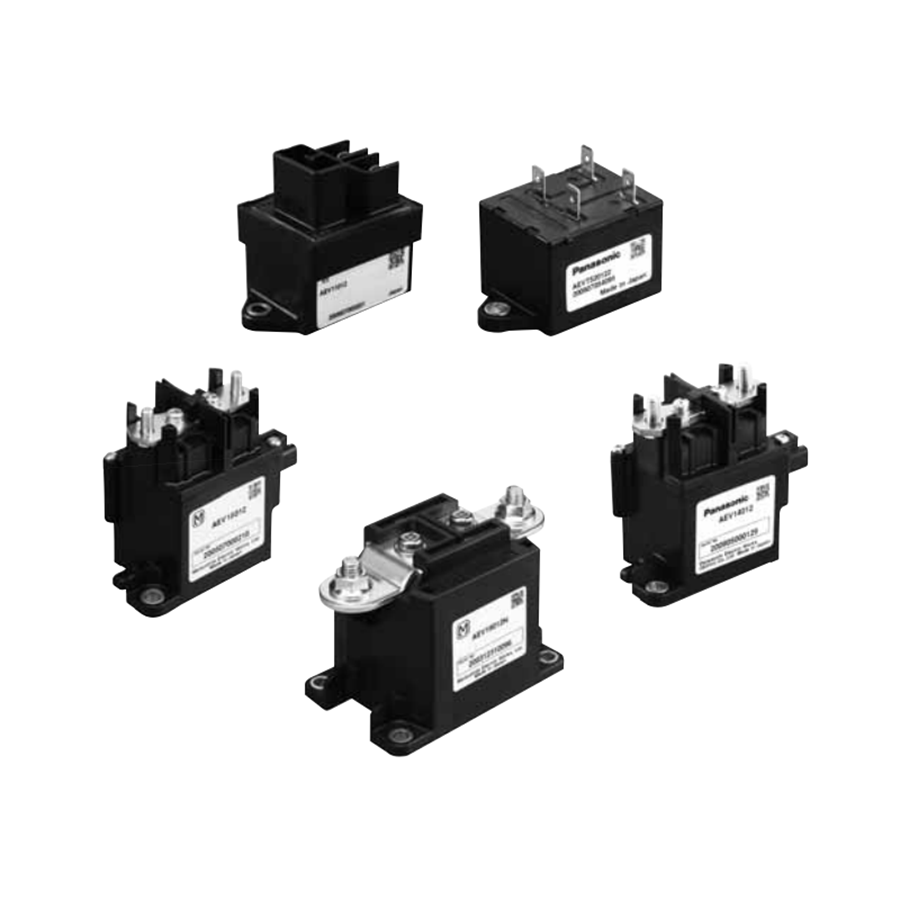

AEV17012
Manufacturer:
Panasonic
Mfr.Part #:
AEV17012
Datasheet:
Description:
Power Relays Chassis Mount, Flanges 500 mA 12 V Automotive
| Parameter | Value |
|---|---|
| Length | 67 mm |
| Width | 45 mm |
| Termination | Wire Leads |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -40 °C |
| Height | 86.4 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Max Current Rating | 200 A |
| Max Voltage Rating (DC) | 400 V |
| Throw Configuration | SPST |
| Coil Voltage (DC) | 12 V |
| Coil Current | 500 mA |
| Coil Type | Non-Latching |
| Relay Type | Automotive |
| Operate Time | 50 ms |
| Release Time | 30 ms |
| Contact Current Rating | 200 A |
| power consumption | 6 W |
| Termination Style | Wire Leads |
| Switching Voltage | 400 VDC |
| Coil Power | 6 W |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1 V |
Stock: 91
Distributors
pcbx
pcbxUnit Price$77.09195
Ext.Price$77.09195
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $77.09195 | $77.09195 |
| 10 | $68.64933 | $686.49330 |
| 25 | $65.54689 | $1638.67225 |
| 50 | $63.29187 | $3164.59350 |
| 100 | $61.11356 | $6111.35600 |
