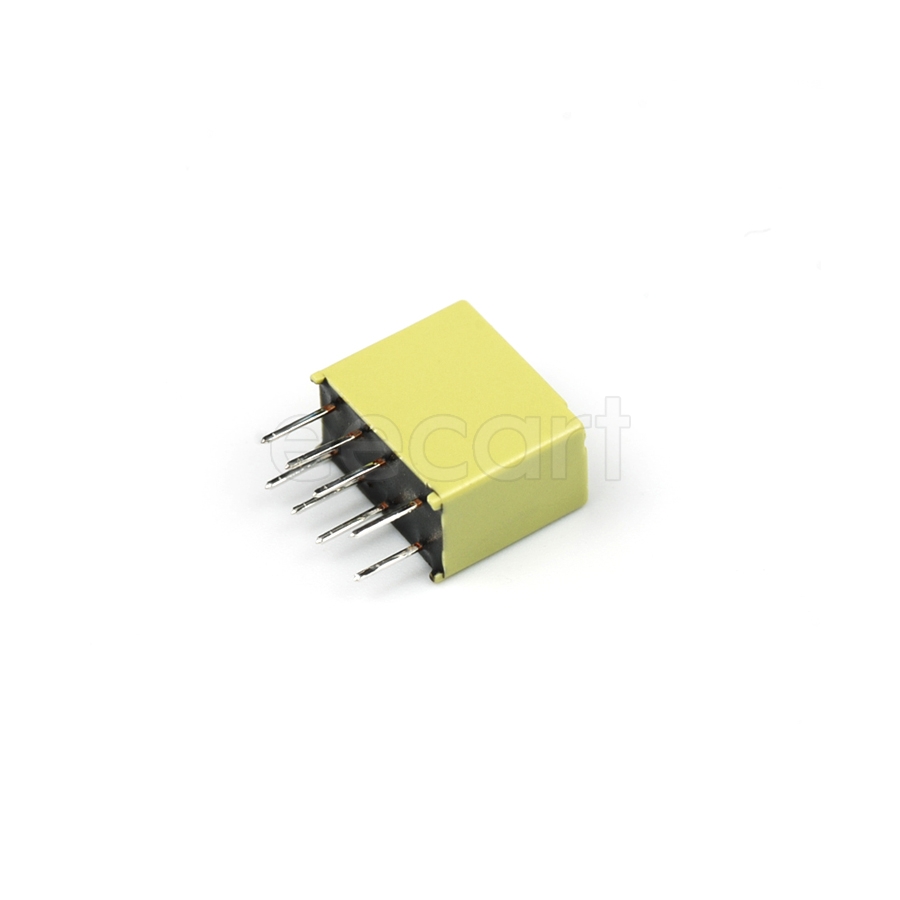

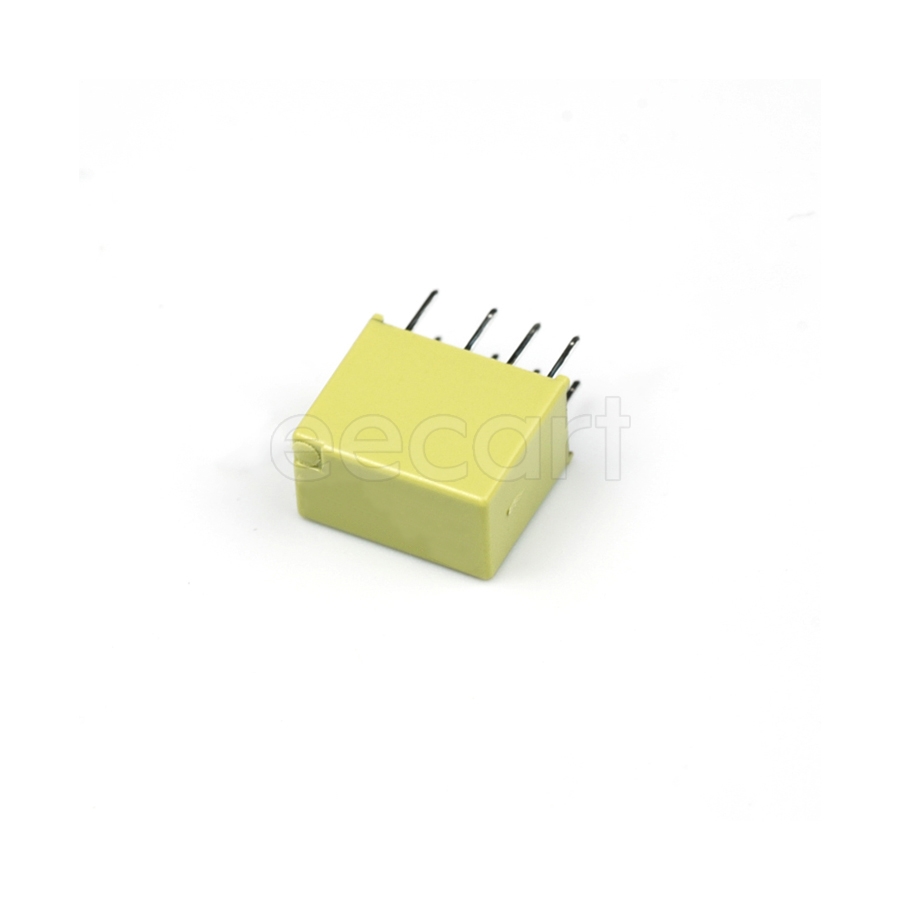

AGN2004H
Manufacturer:
Panasonic
Mfr.Part #:
AGN2004H
Datasheet:
Description:
Signal Relays Through Hole 31 mA Non-Latching Coil Voltage (DC):4.5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 110 V |
| Length | 10.6 mm |
| Width | 5.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Power Rating | 30 W |
| Height | 9 mm |
| Packaging | Bulk |
| Depth | 5.7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 1 g |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Gold, Silver |
| Pitch | 2.2 mm |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 110 V |
| Approvals | CSA, UL |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 4.5 V |
| Coil Current | 31 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 145 Ω |
| Relay Type | Telecom |
| Operate Time | 4 ms |
| Release Time | 4 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 140 mW |
| Termination Style | PC Pin |
| Switching Voltage | 125 V, 110 V |
| Test Voltage | 1.5 kV |
| Coil Power | 140 mW |
| Must Operate Voltage | 3.38 V |
| Must Release Voltage | 450 mV |
| Contact Form | DPDT (2 Form C) |
Stock: 3418
Distributors
pcbx
pcbxUnit Price$1.30963
Ext.Price$1.30963
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.30963 | $1.30963 |
| 10 | $1.16800 | $11.68000 |
| 25 | $1.11522 | $27.88050 |
| 50 | $1.07707 | $53.85350 |
| 100 | $1.04022 | $104.02200 |
| 300 | $0.99892 | $299.67600 |
| 500 | $0.95928 | $479.64000 |
| 1000 | $0.92635 | $926.35000 |
| 3000 | $0.88950 | $2668.50000 |
| 5000 | $0.85411 | $4270.55000 |
