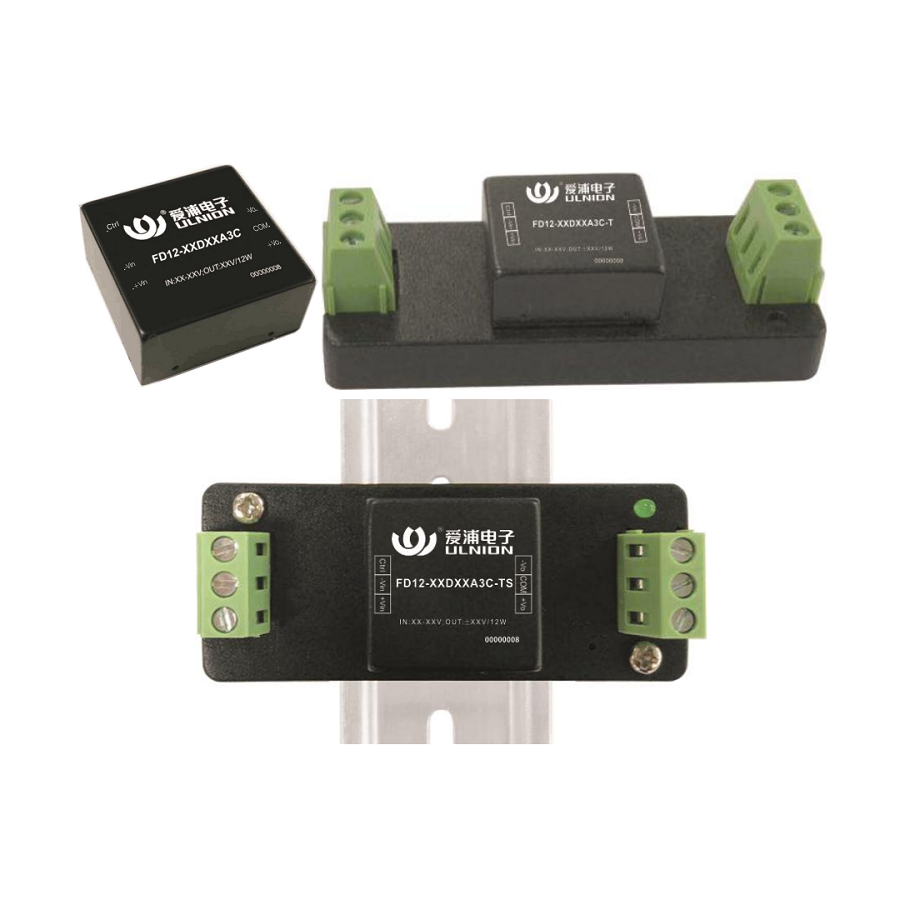

FD12-18D12A3
Manufacturer:
AIPULNION
Mfr.Part #:
FD12-18D12A3
Datasheet:
Description:
DC to DC Converters Plugin Through Hole Nominal Input Voltage:24 V Min Input Voltage:9 V Max Input Voltage:36 V 88 %
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11 mm |
| Packaging | Tube |
| RoHS | Compliant |
| Min Input Voltage | 9 V |
| Max Input Voltage | 36 V |
| Isolation Voltage | 1.5 kV |
| Output Power | 12 W |
| Efficiency | 88 % |
| Nominal Input Voltage | 24 V |
| Output Current-Channel 1 | 500 mA |
| Output Current-Channel 2 | -500 mA |
| Output Voltage-Channel 1 | 12 V |
| Output Voltage-Channel 2 | -12 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$6.45245
Ext.Price$6.45245
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.45245 | $6.45245 |
| 10 | $5.55005 | $55.50050 |
| 25 | $5.20770 | $130.19250 |
| 50 | $4.88646 | $244.32300 |
| 100 | $4.58500 | $458.50000 |
