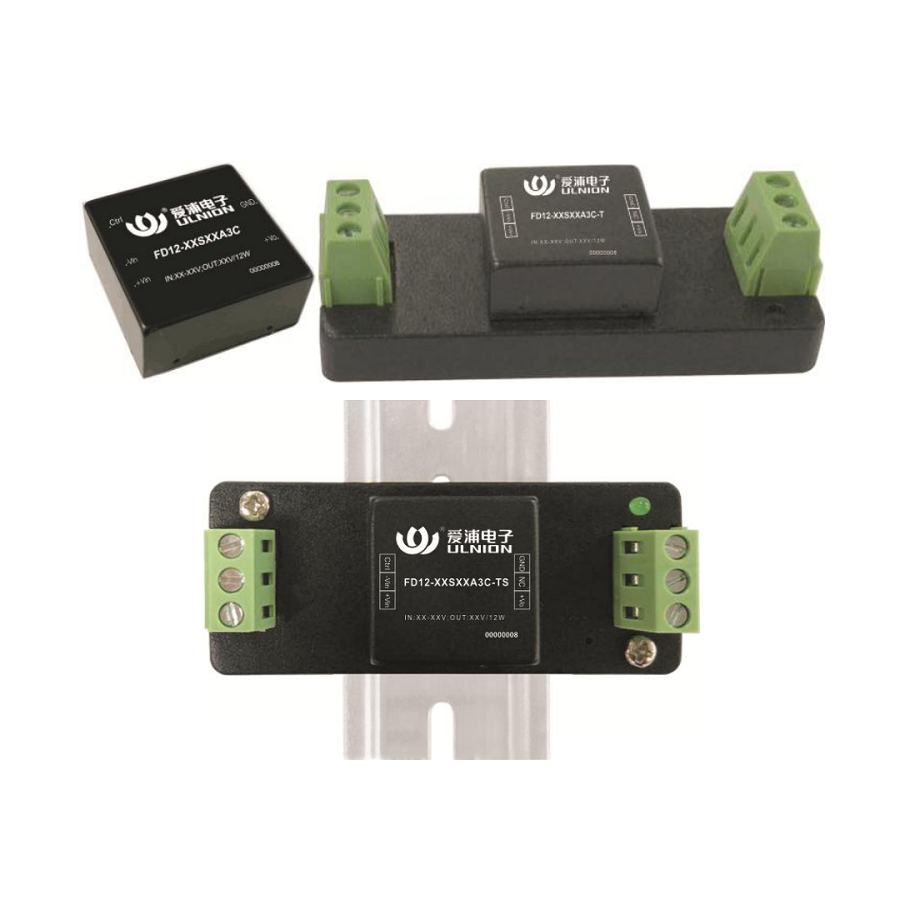

FD12-36S24A3
Manufacturer:
AIPULNION
Mfr.Part #:
FD12-36S24A3
Datasheet:
Description:
DC to DC Converters Plugin Through Hole Nominal Input Voltage:48 V Min Input Voltage:18 V Max Input Voltage:75 V 86 %
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 25.4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 11 mm |
| Packaging | Box |
| RoHS | Compliant |
| Min Input Voltage | 18 V |
| Max Input Voltage | 75 V |
| Isolation Voltage | 1.5 kV |
| Output Power | 12 W |
| Efficiency | 86 % |
| Nominal Input Voltage | 48 V |
| Output Current-Channel 1 | 500 mA |
| Output Voltage-Channel 1 | 24 V |
Stock: 1
Distributors
pcbx
pcbxUnit Price$4.92298
Ext.Price$4.92298
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.92298 | $4.92298 |
| 10 | $4.80998 | $48.09980 |
| 25 | $4.77621 | $119.40525 |
| 50 | $4.74268 | $237.13400 |
| 100 | $4.70935 | $470.93500 |
