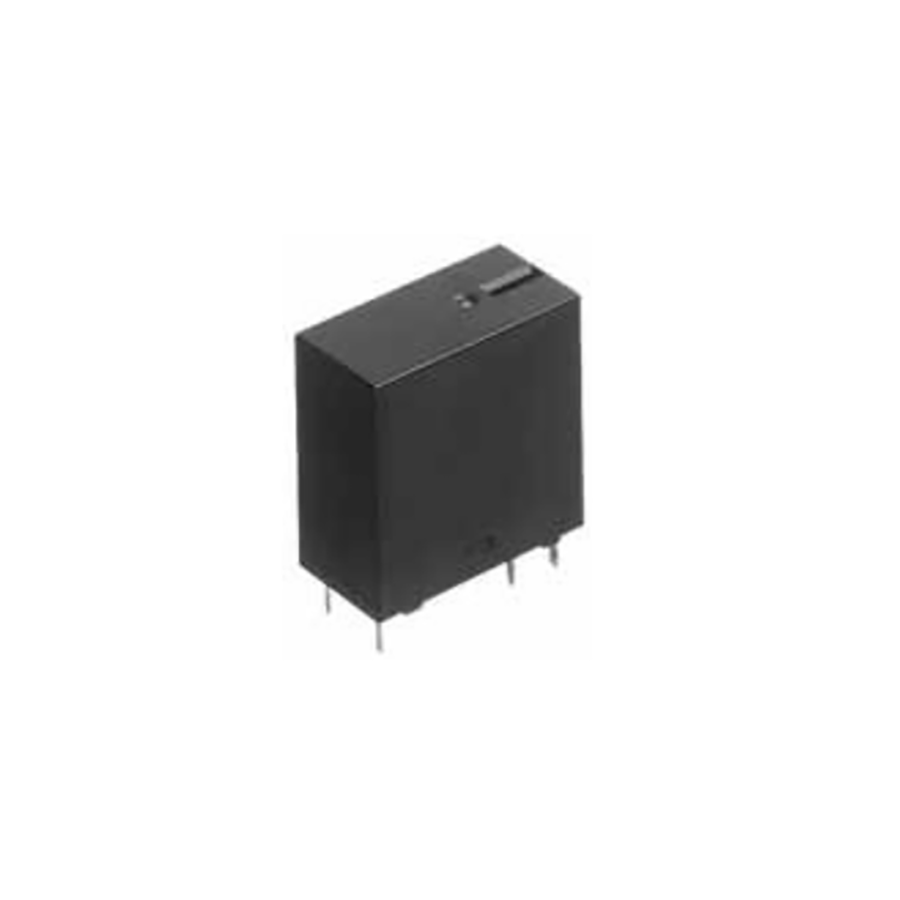

ALA2PF24
Manufacturer:
Panasonic
Mfr.Part #:
ALA2PF24
Datasheet:
Description:
Signal Relays Through Hole 22.1 mA Non-Latching Coil Voltage (DC):24 V
| Parameter | Value |
|---|---|
| Length | 24 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 6 |
| Height | 25 mm |
| Packaging | Tube |
| Depth | 12 mm |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver, Tin |
| Current Rating | 5 A |
| Max Current Rating | 5 A |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | DPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 22.1 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.087 kΩ |
| Relay Type | General Purpose |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Contact Current Rating | 5 A |
| switching current | 5 A |
| power consumption | 530 mW |
| Termination Style | Solder Pin |
| Switching Voltage | 277 VAC |
| Coil Power | 530 mW |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 1.2 V |
| Contact Form | 2 Form A (DPST-NO) |
