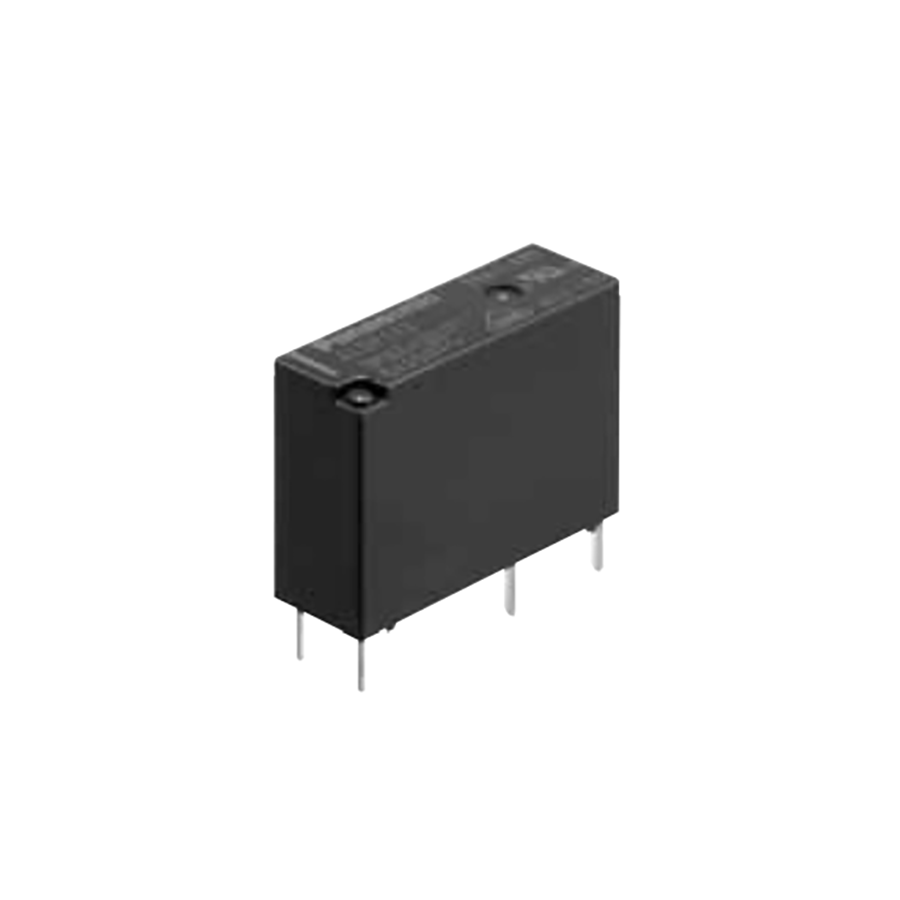

ALDP124W
Manufacturer:
Panasonic
Mfr.Part #:
ALDP124W
Datasheet:
Description:
Power Relays Through Hole 8.3 mA 2.88 kΩ 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20.5 mm |
| Width | 7.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 4 |
| Power Rating | 200 mW |
| Height | 15.3 mm |
| Packaging | Bulk |
| Depth | 7.2 mm |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Max Current Rating | 5 A |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 8.3 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 2.88 kΩ |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 5 A |
| switching current | 5 A |
| Termination Style | PC Pin |
| Switching Voltage | 277 V |
| Coil Power | 200 mW |
| Switching Capacity | 1.385 kW |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 1.2 V |
Stock: 834
Distributors
pcbx
pcbxUnit Price$0.96350
Ext.Price$0.96350
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.96350 | $0.96350 |
| 10 | $0.81987 | $8.19870 |
| 25 | $0.80738 | $20.18450 |
| 50 | $0.79509 | $39.75450 |
| 100 | $0.75063 | $75.06300 |
| 300 | $0.72382 | $217.14600 |
| 500 | $0.69797 | $348.98500 |
| 1000 | $0.67304 | $673.04000 |
| 3000 | $0.64900 | $1947.00000 |
| 5000 | $0.62581 | $3129.05000 |
