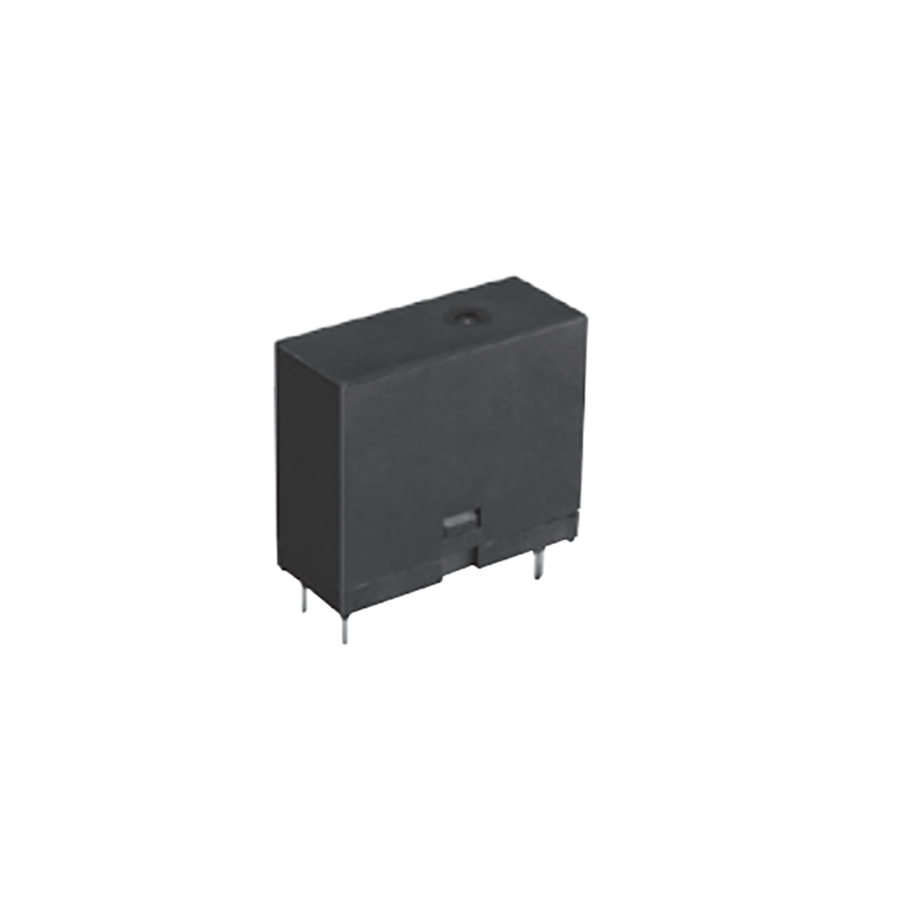

ALE1PB05
Manufacturer:
Panasonic
Mfr.Part #:
ALE1PB05
Datasheet:
Description:
Signal Relays Through Hole 80 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Length | 28.6 mm |
| Width | 28.6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 277 V |
| Number of Pins | 4 |
| Power Rating | 400 mW |
| Height | 24.9 mm |
| Packaging | Bulk |
| Depth | 12.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 15 g |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Current Rating | 16 A |
| Max Current Rating | 16 A |
| Number of Contacts | 1 |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 277 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 80 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 63 Ω |
| Relay Type | General Purpose |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Contact Current Rating | 16 A |
| switching current | 16 A |
| power consumption | 400 mW |
| Termination Style | PC Pin |
| Switching Voltage | 277 VAC |
| Coil Power | 400 mW |
| Switching Capacity | 4.432 kW |
| Must Operate Voltage | 3.75 V |
| Must Release Voltage | 250 mV |
| Contact Form | SPST-NO (1 Form A) |
