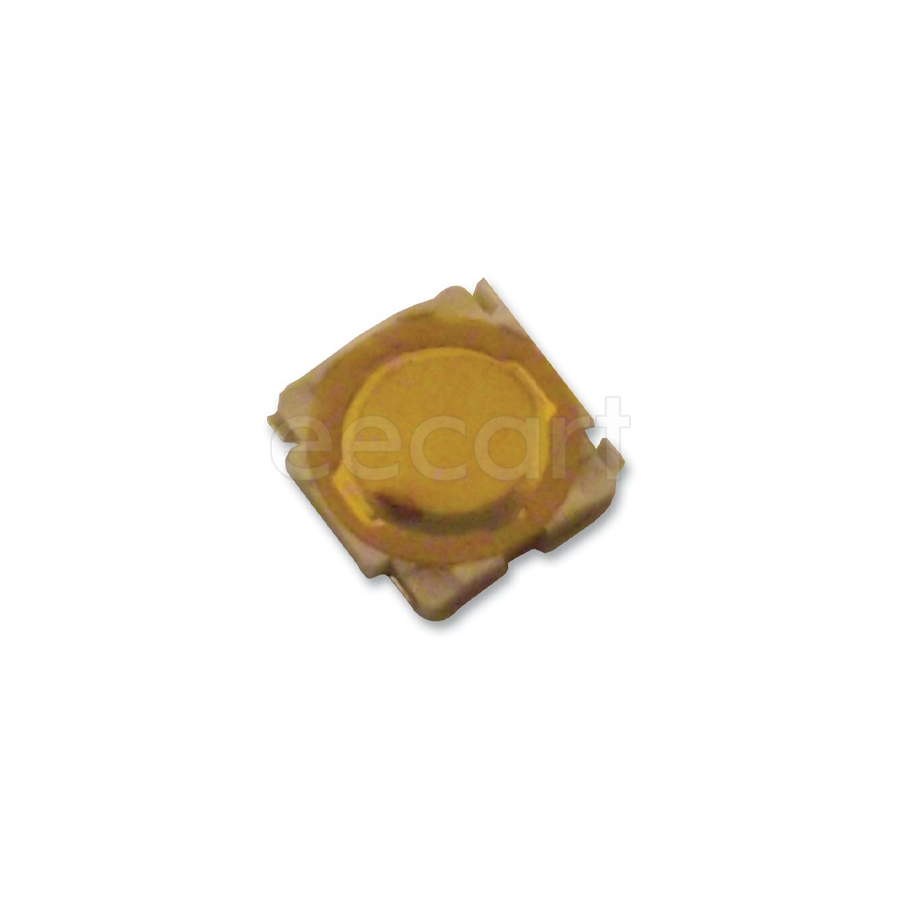

SKRBACE010
Manufacturer:
ALPS
Mfr.Part #:
SKRBACE010
Datasheet:
Description:
Tactile Switches SMD/SMT 2.55 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 4.8 mm |
| Termination | J-Bend |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Packaging | Reel |
| Voltage Rating | 12 V |
| Depth | 4.8 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 0 m |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Illumination Type | Illuminated |
| Electrical Life | 500 kcycles |
| Operating Force | 2.55 N |
| Contact Current Rating | 50 mA |
| Mounting Direction | Straight |
Stock: 6254
Distributors
pcbx
pcbxUnit Price$0.06538
Ext.Price$0.06538
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.06538 | $0.06538 |
| 10 | $0.05585 | $0.55850 |
| 50 | $0.04771 | $2.38550 |
| 100 | $0.03938 | $3.93800 |
