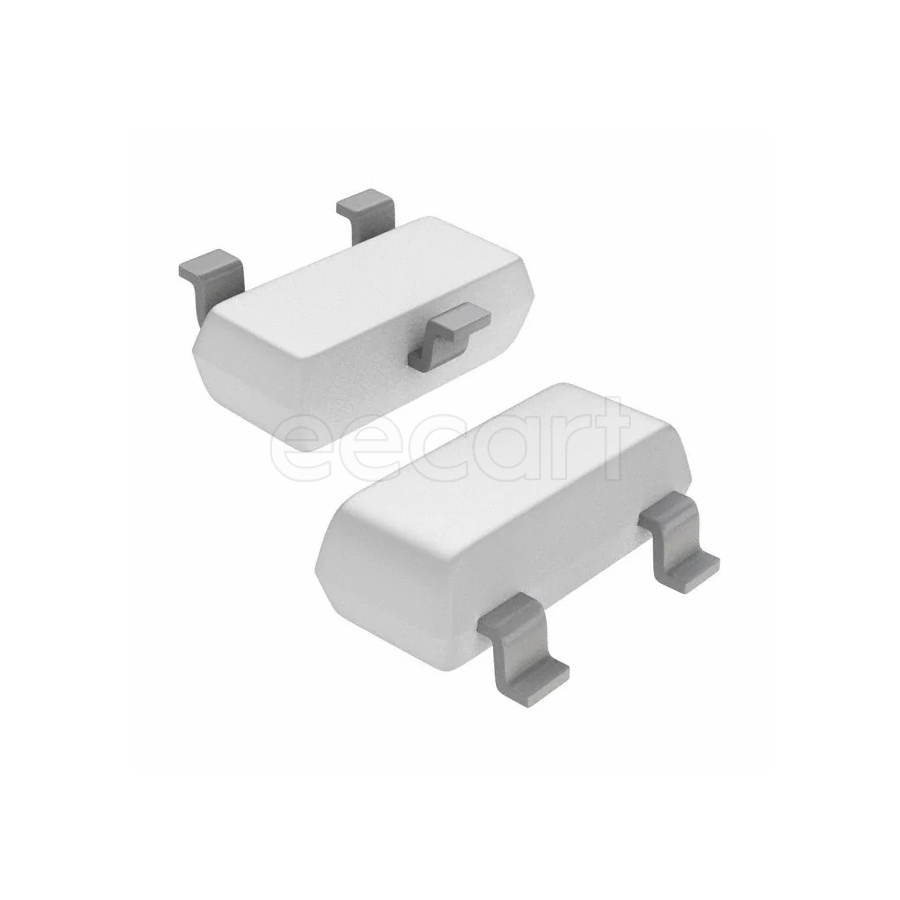

AM23ESGC
Manufacturer:
Kingbright
Mfr.Part #:
AM23ESGC
Datasheet:
Description:
LEDs SOT-23-3 SMD/SMT Green, Red 617 nm 20 mA 2.2 V
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.2 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Forward Current | 20 mA |
| Forward Voltage | 2.2 V |
| Color | Green, Red, White |
| Illumination Color | Green, Red |
| Lens Style | Clear |
| Luminous Intensity | 5 mcd |
| Viewing Angle | 140 ° |
| Wavelength | 568 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 617 nm |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 3908
Distributors
pcbx
pcbxUnit Price$0.33171
Ext.Price$0.33171
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33171 | $0.33171 |
| 10 | $0.22570 | $2.25700 |
| 50 | $0.19147 | $9.57350 |
| 100 | $0.16244 | $16.24400 |
| 500 | $0.13508 | $67.54000 |
| 1000 | $0.12567 | $125.67000 |
| 3000 | $0.11613 | $348.39000 |
| 5000 | $0.10732 | $536.60000 |
| 10000 | $0.09917 | $991.70000 |
