AM2520QBC/D09
Manufacturer:
Kingbright
Mfr.Part #:
AM2520QBC/D09
Datasheet:
Description:

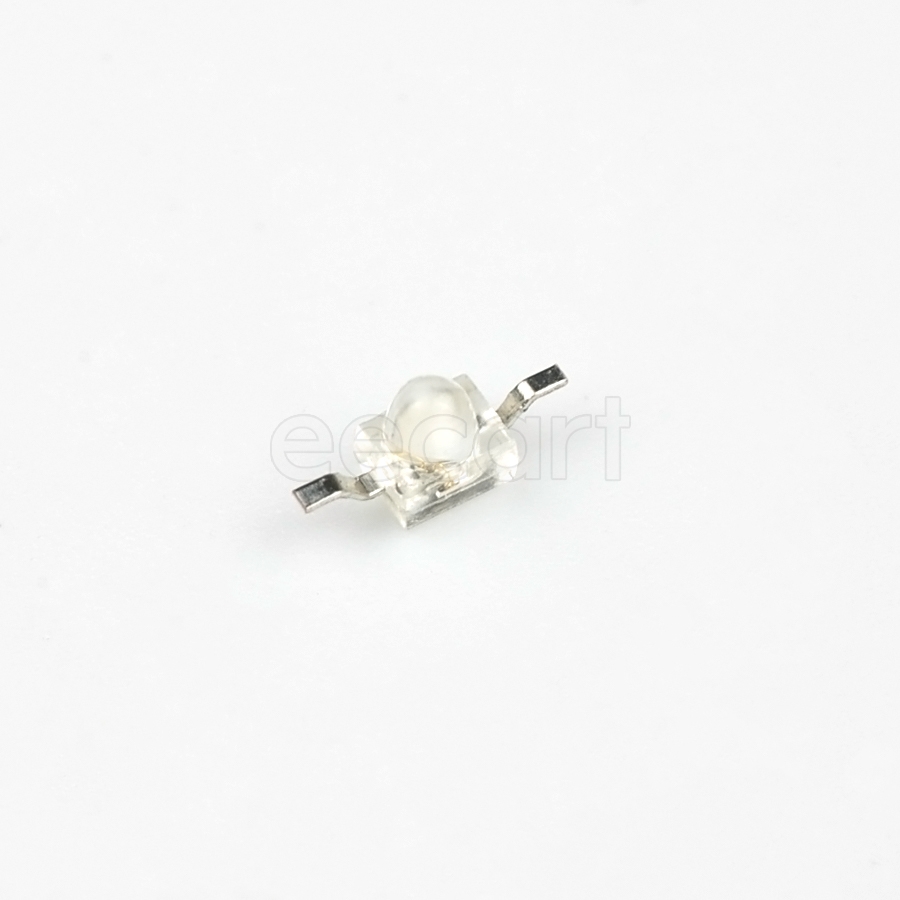

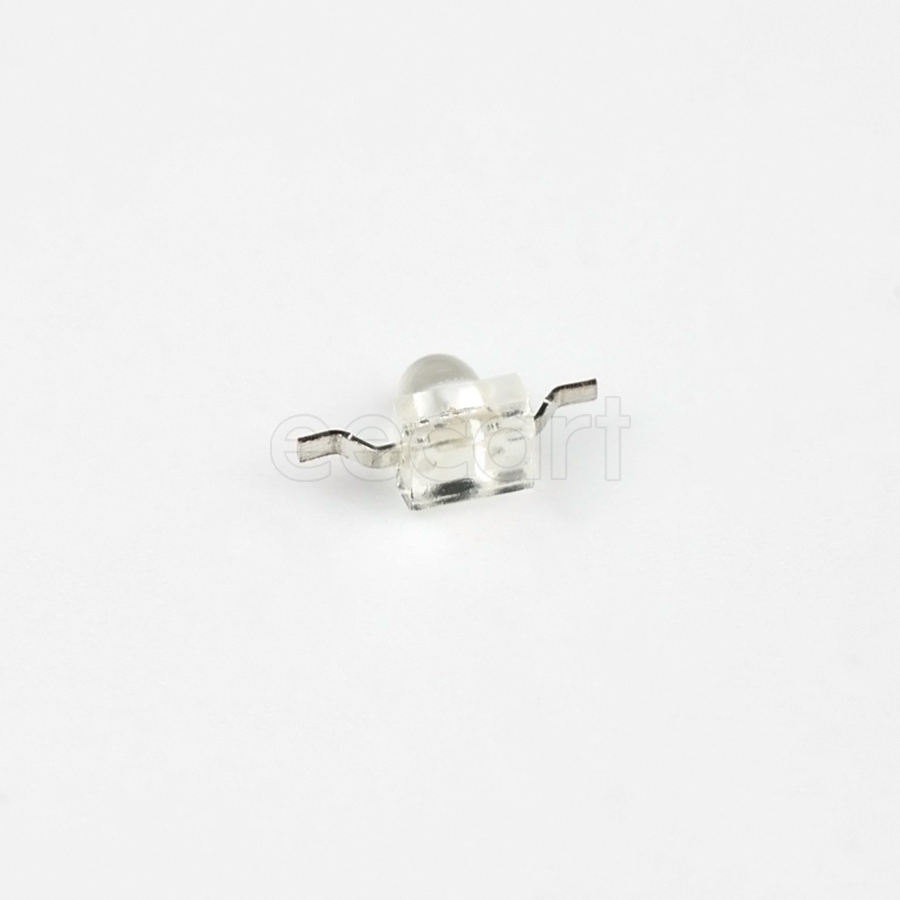

LEDs 2.50mmL×2.00mmW×2.80mmH SMD/SMT Blue 465 nm 20 mA 3.3 V
| Parameter | Value |
|---|---|
| Length | 2.5 mm |
| Width | 2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.7 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Manufacturer Package Identifier | AM2520QBC/D09 |
| Forward Current | 20 mA |
| Forward Voltage | 3.3 V |
| Color | Blue |
| Illumination Color | Blue |
| Luminous Intensity | 1.3 cd |
| Power Dissipation | 120 mW |
| Viewing Angle | 20 ° |
| Wavelength | 465 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 465 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Max Junction Temperature (Tj) | 115 °C |
| Schedule B | 8541402000 |
| Lens Style | Round with Domed Top |
| Packaging | Reel |
Stock: 9824
Distributors
pcbx
pcbxUnit Price$0.45055
Ext.Price$0.45055
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45055 | $0.45055 |
| 10 | $0.30949 | $3.09490 |
| 25 | $0.26255 | $6.56375 |
| 50 | $0.22273 | $11.13650 |
| 100 | $0.18894 | $18.89400 |
| 300 | $0.18276 | $54.82800 |
| 500 | $0.17678 | $88.39000 |
| 1000 | $0.17099 | $170.99000 |
| 3000 | $0.16292 | $488.76000 |
| 5000 | $0.15523 | $776.15000 |
| 10000 | $0.14790 | $1479.00000 |
