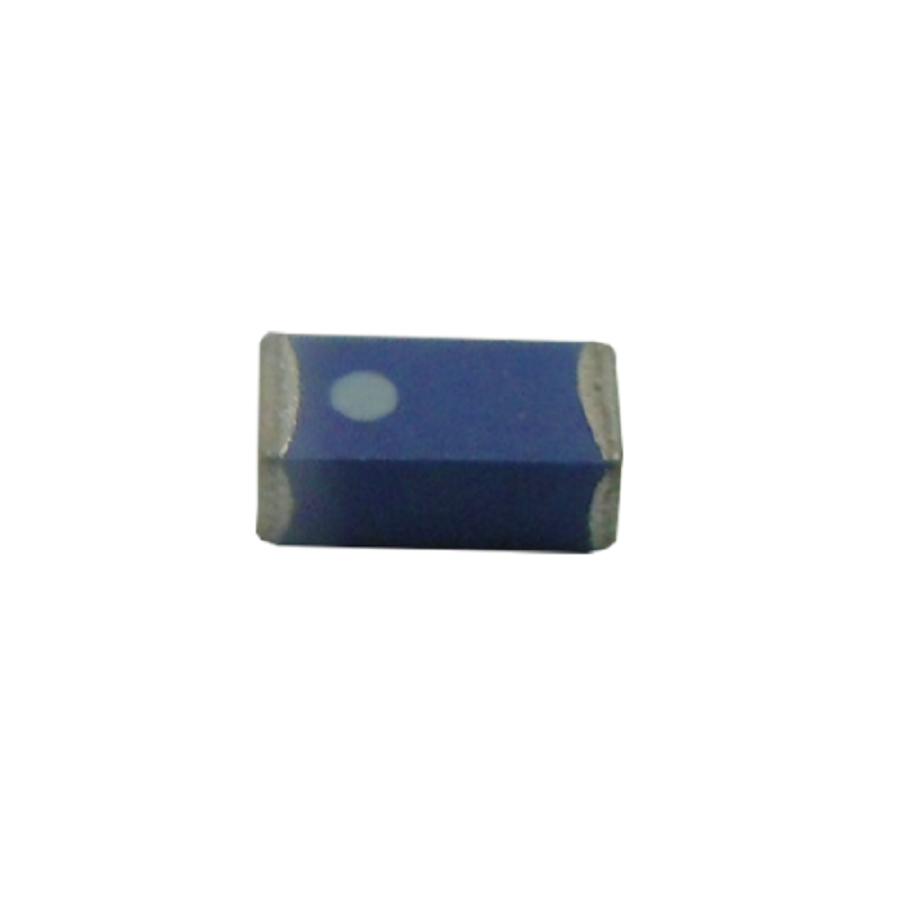

ANT3216LL00R2400A
Manufacturer:
Yageo
Mfr.Part #:
ANT3216LL00R2400A
Datasheet:
Description:
RF - Antennas 1206(3216 Metric) SMD/SMT 2.4 GHz to 2.5 GHz 5.05 dBi
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 1.2 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Impedance | 50 Ω |
| Frequency | 2.4 GHz to 2.5 GHz |
| Bandwidth | 160 MHz |
| Gain | 5.05 dBi |
| Number of Bands | 1 |
| Frequency Range | 2.4 GHz to 2.5 GHz |
| Frequency Group | UHF (2 GHz to 3 GHz) |
| Antenna Type | Chip |
| Applications | Bluetooth, ISM, Wi-Fi, Zigbee |
| Power - Max | 1 W |
Stock: 26497
Distributors
pcbx
pcbxUnit Price$0.10397
Ext.Price$0.10397
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10397 | $0.10397 |
| 10 | $0.09324 | $0.93240 |
| 50 | $0.08362 | $4.18100 |
| 100 | $0.07383 | $7.38300 |
| 500 | $0.06518 | $32.59000 |
| 1000 | $0.06399 | $63.99000 |
| 3000 | $0.06282 | $188.46000 |
| 5000 | $0.06076 | $303.80000 |
