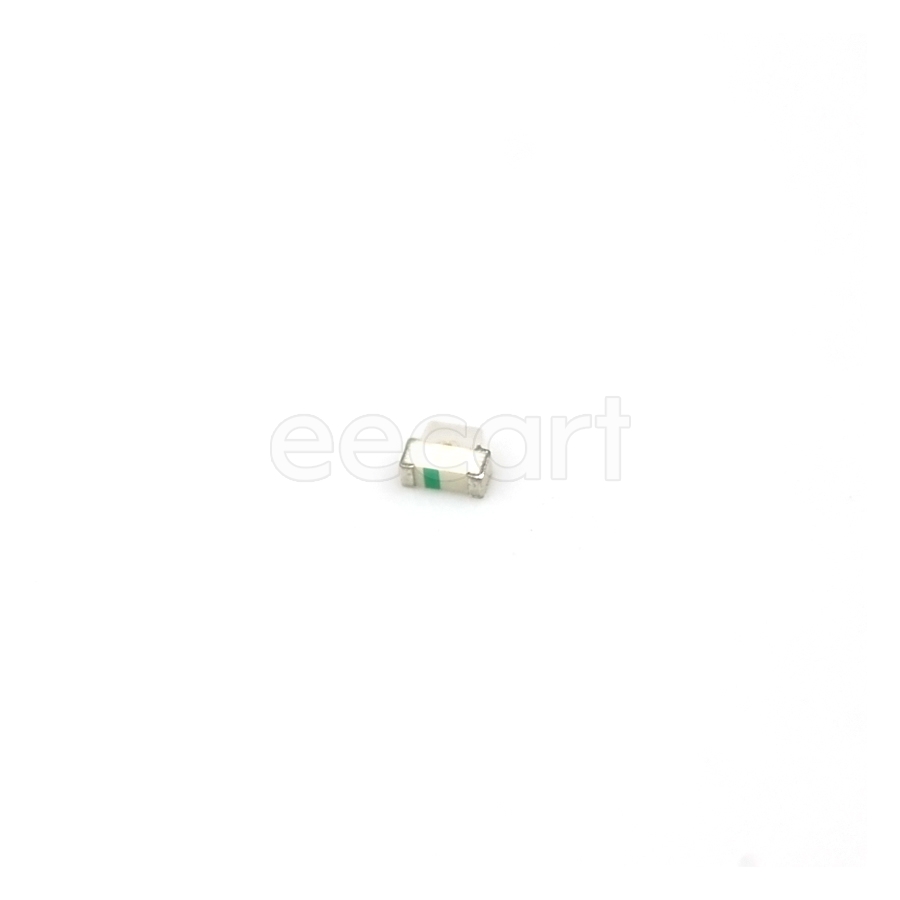

APA1606QBC/D
Manufacturer:
Kingbright
Mfr.Part #:
APA1606QBC/D
Datasheet:
Description:
LEDs 0605(1611 Metric) SMD/SMT Blue 465 nm 20 mA 3.3 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Power Rating | 120 mW |
| Height | 600 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Forward Current | 20 mA |
| Forward Voltage | 3.3 V |
| Color | Blue |
| Illumination Color | Blue |
| Lens Style | Clear, Flat |
| Luminous Intensity | 80 mcd |
| Number of LEDs | 1 |
| Viewing Angle | 110 ° |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 465 nm |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 408
Distributors
pcbx
pcbxUnit Price$0.27523
Ext.Price$0.27523
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27523 | $0.27523 |
| 10 | $0.24619 | $2.46190 |
| 50 | $0.22022 | $11.01100 |
| 100 | $0.19290 | $19.29000 |
| 500 | $0.16897 | $84.48500 |
| 1000 | $0.15280 | $152.80000 |
| 3000 | $0.13818 | $414.54000 |
