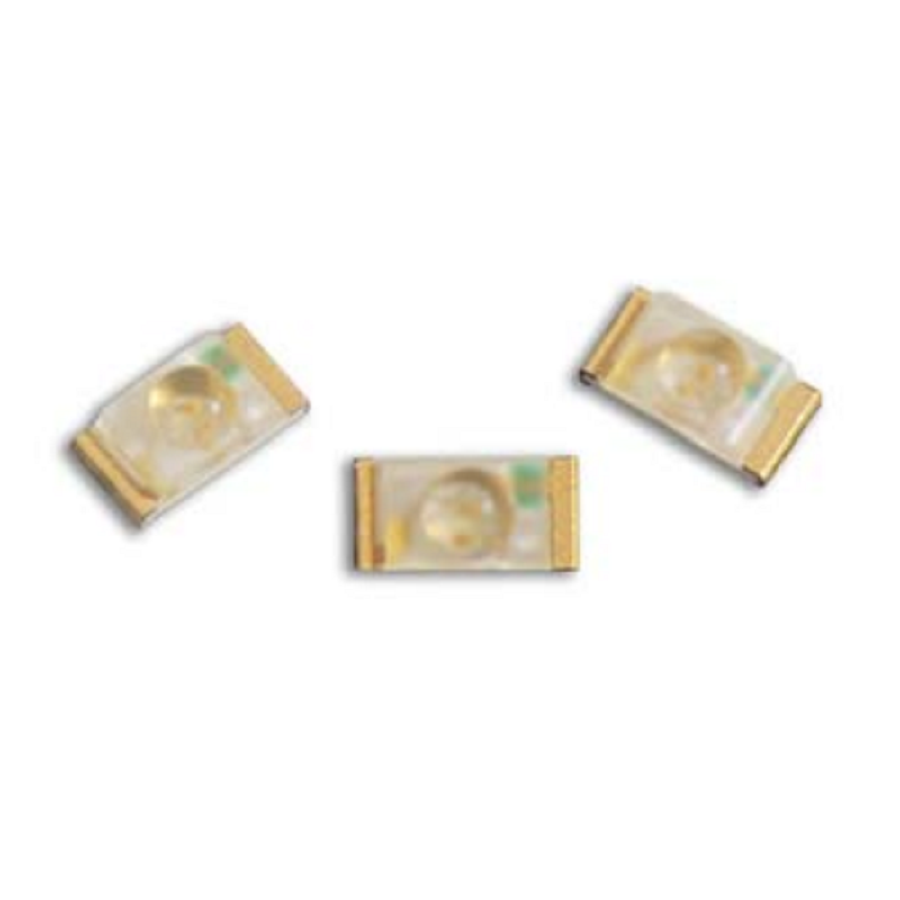

APHD1608LZGCK
Manufacturer:
Kingbright
Mfr.Part #:
APHD1608LZGCK
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Green 525 nm 2 mA 2.65 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 800 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 2 mA |
| Forward Voltage | 2.65 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Round with Domed Top |
| Luminous Intensity | 180 mcd |
| Power Dissipation | 82 mW |
| Viewing Angle | 100 ° |
| Wavelength | 525 nm |
| Lens Transparency | Water Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 525 nm |
| Reverse Voltage | 5 V |
| Max Junction Temperature (Tj) | 110 °C |
Stock: 2477
Distributors
pcbx
pcbxUnit Price$0.41293
Ext.Price$0.41293
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41293 | $0.41293 |
| 10 | $0.28042 | $2.80420 |
| 25 | $0.25198 | $6.29950 |
| 50 | $0.22643 | $11.32150 |
| 100 | $0.20347 | $20.34700 |
| 300 | $0.18558 | $55.67400 |
| 500 | $0.16927 | $84.63500 |
| 1000 | $0.15730 | $157.30000 |
| 3000 | $0.14496 | $434.88000 |
| 5000 | $0.13359 | $667.95000 |
| 10000 | $0.12311 | $1231.10000 |
