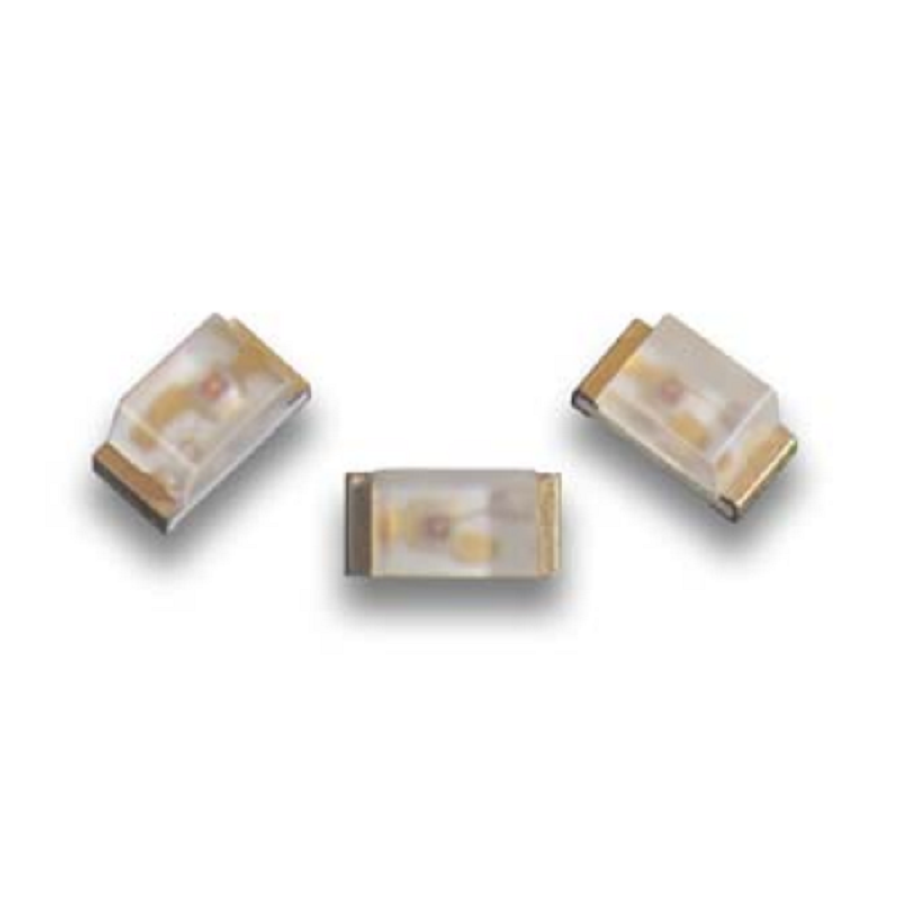

APT1608LZGCK
Manufacturer:
Kingbright
Mfr.Part #:
APT1608LZGCK
Datasheet:
Description:
LEDs 0603(1608 Metric) SMD/SMT Green 525 nm 2 mA 2.65 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 800 µm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Height | 750 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 2 mA |
| Forward Voltage | 2.65 V |
| Color | Green |
| Illumination Color | Green |
| Lens Style | Rectangle with Flat Top |
| Luminous Intensity | 50 mcd |
| Power Dissipation | 102.5 mW |
| Viewing Angle | 120 ° |
| Wavelength | 525 nm |
| Lens Transparency | Clear |
| Lens Color | Colorless |
| Dominant Wavelength/CCT (K) | 525 nm |
| Reverse Voltage | 5 V |
| Test Current | 2 mA |
| Max Junction Temperature (Tj) | 115 °C |
Stock: 1805
Distributors
pcbx
pcbxUnit Price$0.34800
Ext.Price$0.34800
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34800 | $0.34800 |
| 10 | $0.30867 | $3.08670 |
| 50 | $0.27379 | $13.68950 |
| 100 | $0.23649 | $23.64900 |
| 500 | $0.20428 | $102.14000 |
| 1000 | $0.19046 | $190.46000 |
| 3000 | $0.17758 | $532.74000 |
