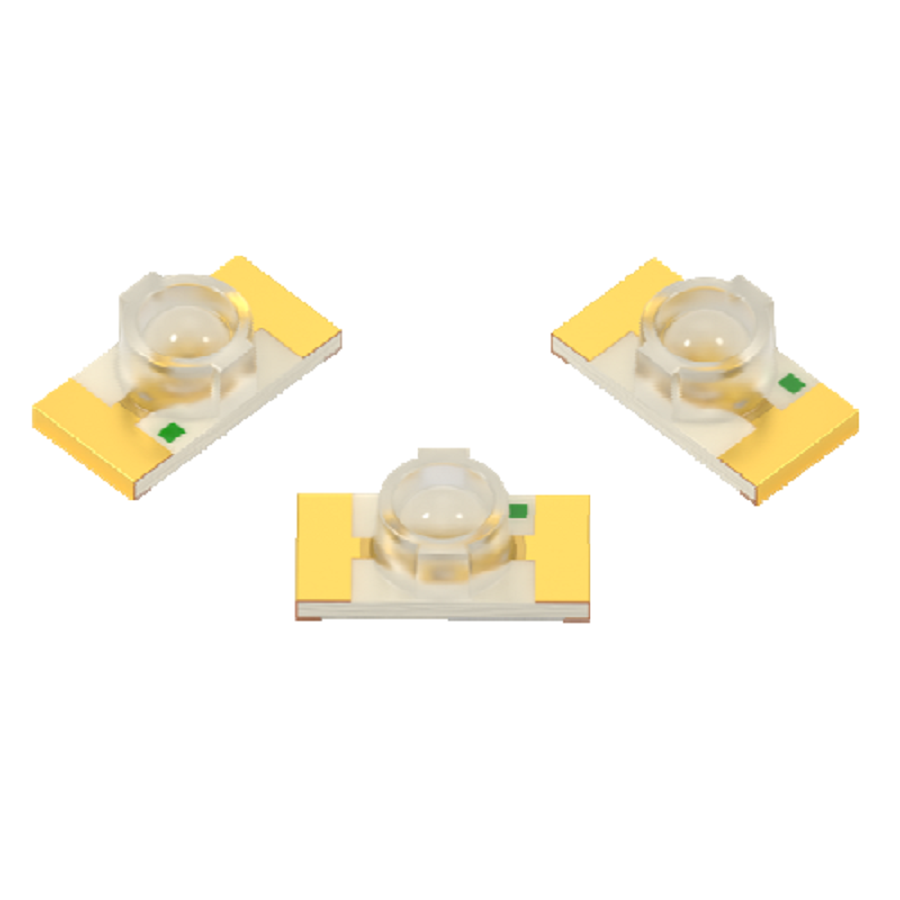

APTL3216QBC/D
Manufacturer:
Kingbright
Mfr.Part #:
APTL3216QBC/D
Datasheet:
Description:
LEDs 1206(3216 Metric) SMD/SMT Blue 465 nm 20 mA 3.3 V
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 2 |
| Height | 1.1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Forward Current | 20 mA |
| Forward Voltage | 3.3 V |
| Color | Blue |
| Illumination Color | Blue |
| Lens Style | Clear, Round |
| Luminous Intensity | 250 mcd |
| Number of LEDs | 1 |
| Viewing Angle | 70 ° |
| Lens Transparency | Clear |
| Lens Color | Clear, Colorless |
| Dominant Wavelength/CCT (K) | 465 nm |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 1078
Distributors
pcbx
pcbxUnit Price$0.26246
Ext.Price$0.26246
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26246 | $0.26246 |
| 10 | $0.19749 | $1.97490 |
| 50 | $0.17091 | $8.54550 |
| 100 | $0.14790 | $14.79000 |
| 500 | $0.12140 | $60.70000 |
| 1000 | $0.11285 | $112.85000 |
| 3000 | $0.10170 | $305.10000 |
| 5000 | $0.09165 | $458.25000 |
| 10000 | $0.08259 | $825.90000 |
