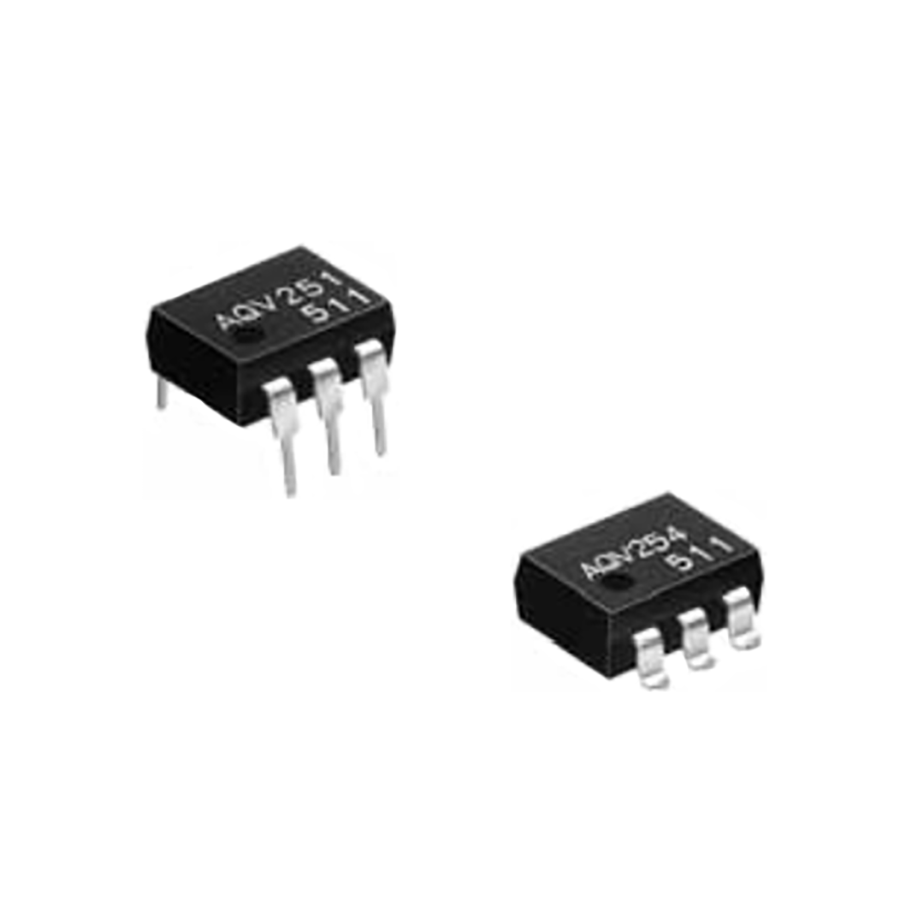

AQV258A
Manufacturer:
Panasonic
Mfr.Part #:
AQV258A
Datasheet:
Description:
Solid State Relays SMD/SMT 20 mA Height:3.6 mm Length:8.8 mm Width:6.4 mm 0 V to 1500 V
| Parameter | Value |
|---|---|
| Capacitance | 1.3 pF |
| Length | 8.8 mm |
| Width | 6.4 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Resistance | 500 Ω |
| Height | 3.6 mm |
| Circuit Type | SPST-NO (1 Form A) |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Approvals | cULus |
| Output Current | 20 mA |
| Output Voltage | 100 V |
| Forward Current | 900 µA |
| Output Type | AC, DC |
| Max Power Dissipation | 410 mW |
| Number of Contacts | 1 |
| Max Output Current | 20 mA |
| Ambient Temperature Range High | 85 °C |
| Throw Configuration | SPST |
| Max Input Voltage | 1.5 V |
| Rise Time | 350 µs |
| Contact Resistance | 345 Ω |
| Isolation Voltage | 1 kV |
| Relay Type | Relay |
| Load Current | 20 mA |
| Input Current | 30 mA |
| Max Input Current | 50 mA |
| Input Voltage | 1.14 V |
| Max Output Voltage | 1.5 kV |
| Test Voltage | 1.5 kV |
| On-State Resistance | 345 Ω |
| Load Voltage | 0 V to 1500 V |
Stock: 806
Distributors
pcbx
pcbxUnit Price$4.00455
Ext.Price$4.00455
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.00455 | $4.00455 |
| 10 | $3.56990 | $35.69900 |
| 25 | $3.40946 | $85.23650 |
| 50 | $3.29258 | $164.62900 |
| 100 | $3.17959 | $317.95900 |
| 300 | $3.05319 | $915.95700 |
| 500 | $2.93182 | $1465.91000 |
| 1000 | $2.83105 | $2831.05000 |
