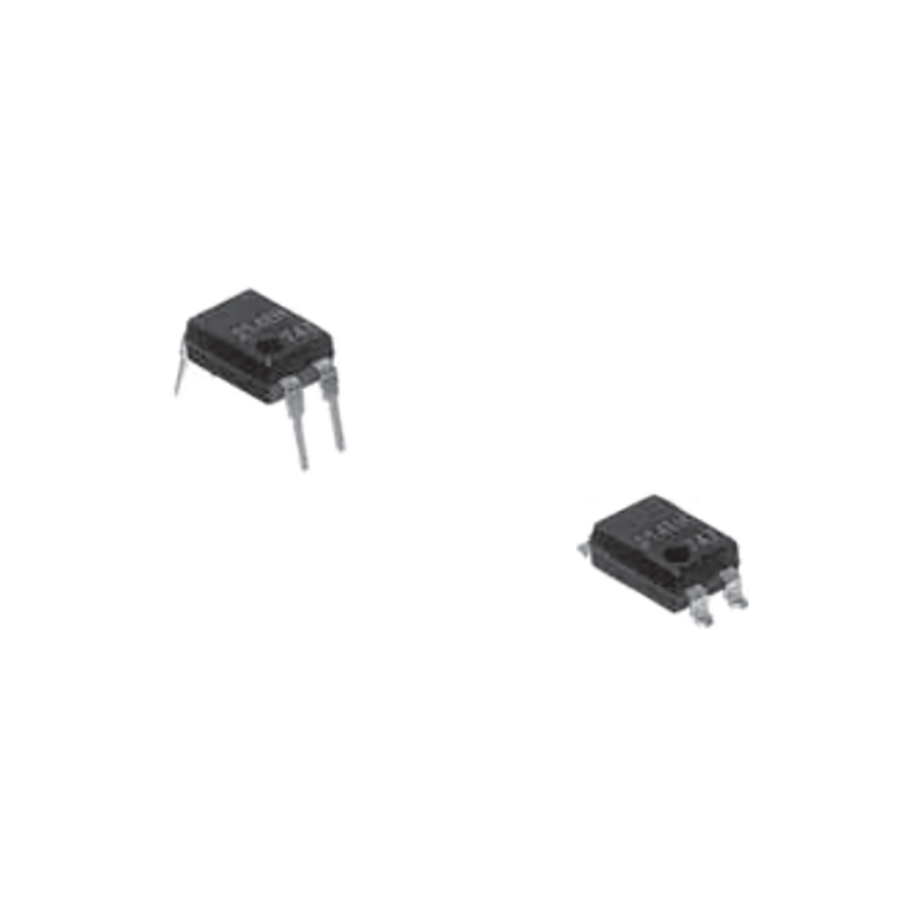

AQY210EHA
Manufacturer:
Panasonic
Mfr.Part #:
AQY210EHA
Datasheet:
Description:
Solid State Relays SMD/SMT 130 mA Height:2.9 mm Length:6.4 mm Width:4.78 mm 0 V to 350 V
| Parameter | Value |
|---|---|
| Length | 6.4 mm |
| Width | 4.78 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 350 V |
| Number of Pins | 4 |
| Resistance | 25 Ω |
| Height | 2.9 mm |
| Circuit Type | SPST-NO (1 Form A) |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current Rating | 130 mA |
| Output Current | 130 mA |
| Output Voltage | 350 V |
| Forward Current | 1.2 mA |
| Output Type | AC, DC |
| Max Output Current | 130 mA |
| Throw Configuration | SPST |
| Max Input Voltage | 1.5 V |
| Rise Time | 500 µs |
| Contact Resistance | 18 Ω |
| Isolation Voltage | 5 kV |
| Relay Type | Relay |
| Load Current | 130 mA |
| Input Current | 50 mA |
| Max Input Current | 50 mA |
| Input Voltage | 1.14 V |
| Max Output Voltage | 350 V |
| Test Voltage | 5 kV |
| On-State Resistance | 25 Ω |
| Schedule B | 8536410030 |
| Load Voltage | 0 V to 350 V |
Stock: 1159
Distributors
pcbx
pcbxUnit Price$1.20117
Ext.Price$1.20117
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.20117 | $1.20117 |
| 10 | $1.07636 | $10.76360 |
| 25 | $1.06042 | $26.51050 |
| 50 | $1.04473 | $52.23650 |
| 100 | $0.94470 | $94.47000 |
| 300 | $0.91605 | $274.81500 |
| 500 | $0.88827 | $444.13500 |
| 1000 | $0.85151 | $851.51000 |
| 3000 | $0.83554 | $2506.62000 |
| 5000 | $0.81987 | $4099.35000 |
