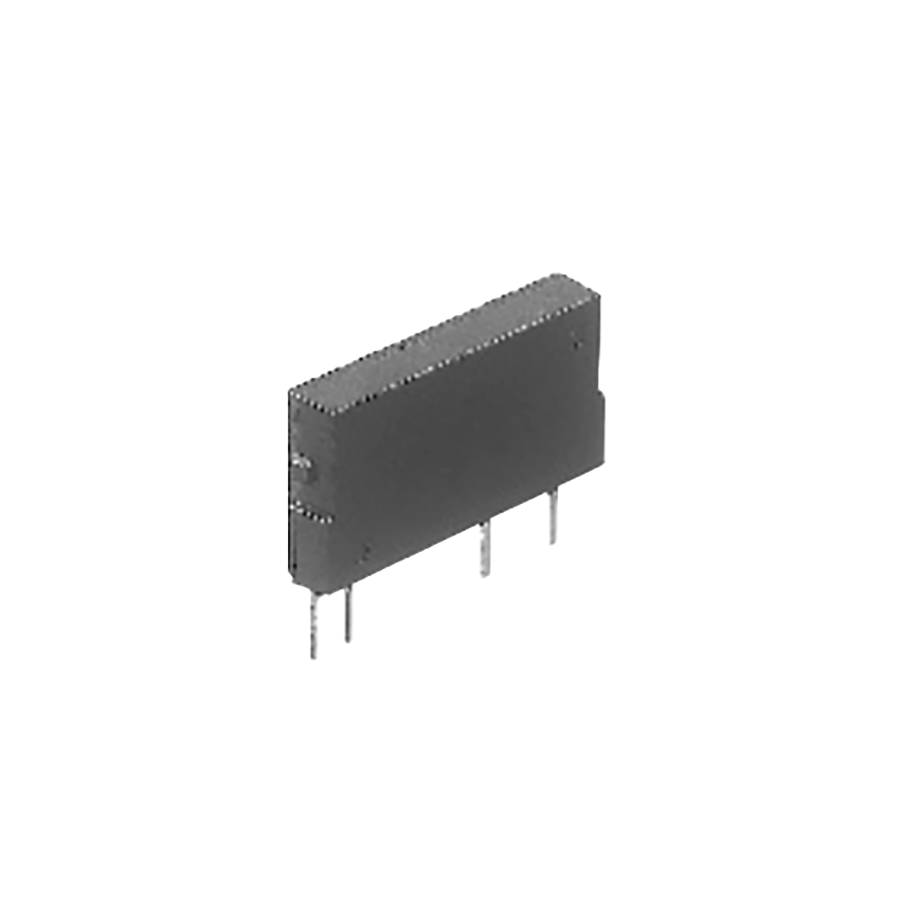

AQZ104
Manufacturer:
Panasonic
Mfr.Part #:
AQZ104
Datasheet:
Description:
Solid State Relays Through Hole 700 mA Height:12.5 mm Length:21 mm Width:3.5 mm 400 V
| Parameter | Value |
|---|---|
| Length | 21 mm |
| Width | 3.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Resistance | 1.6 Ω |
| Height | 12.5 mm |
| Circuit Type | SPST-NO (1 Form A) |
| Packaging | Bulk |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 700 mA |
| Output Voltage | 400 V |
| Forward Current | 1 mA |
| Output Type | DC |
| Max Output Current | 700 mA |
| Throw Configuration | SPST |
| Max Input Voltage | 1.5 V |
| Contact Resistance | 1.23 Ω |
| Isolation Voltage | 2.5 kV |
| Relay Type | Relay |
| Load Current | 700 mA |
| Input Current | 50 mA |
| Max Input Current | 50 mA |
| Input Voltage | 1.16 V |
| Max Output Voltage | 400 V |
| Test Voltage | 2.5 kV |
| On-State Resistance | 1.6 Ω |
| Load Voltage | 400 V |
Stock: 35
Distributors
pcbx
pcbxUnit Price$4.81838
Ext.Price$4.81838
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.81838 | $4.81838 |
| 10 | $4.62431 | $46.24310 |
| 25 | $4.26781 | $106.69525 |
| 50 | $4.14897 | $207.44850 |
| 100 | $4.06776 | $406.77600 |
