AT42QT1010-TSHR
Manufacturer:
Microchip
Mfr.Part #:
AT42QT1010-TSHR
Datasheet:
Description:

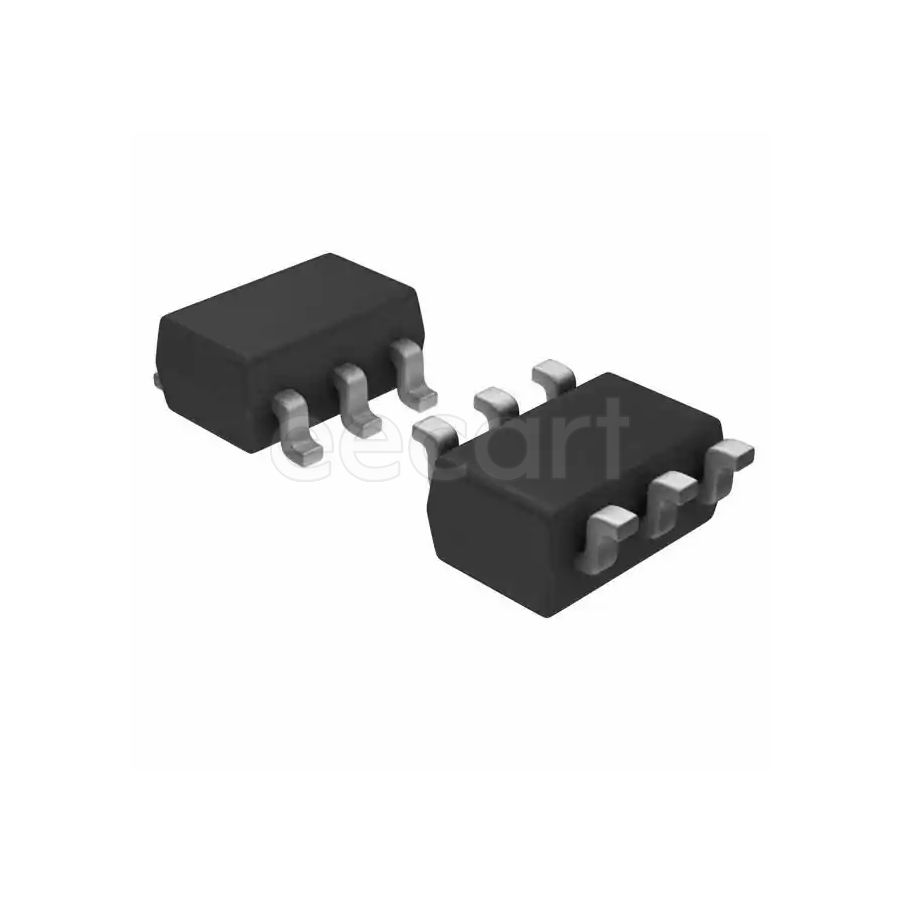

Touch Screen Controllers SOT-23-6 SMD/SMT Capacitive 1.75 B Serial
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 1.75 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1.3 mm |
| REACH SVHC | No SVHC |
| Load Capacitance | 20 pF |
| Interface | Serial |
| Output Type | Digital |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of Channels | 1 |
| Operating Supply Current | 729 µA |
| Number of Inputs | 1 |
| Nominal Supply Current | 729 µA |
| Touchscreen | Capacitive |
| Sensing Method | Capacitive |
| Resolution | 1.75 B |
| Schedule B | 8542310000 |
| Packaging | Reel |
| RoHS | Compliant |
Stock: 2992
Distributors
pcbx
pcbxUnit Price$1.17206
Ext.Price$1.17206
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.17206 | $1.17206 |
| 10 | $0.96614 | $9.66140 |
| 25 | $0.88130 | $22.03250 |
| 50 | $0.80391 | $40.19550 |
| 100 | $0.73332 | $73.33200 |
| 300 | $0.68383 | $205.14900 |
| 500 | $0.63768 | $318.84000 |
| 1000 | $0.61188 | $611.88000 |
