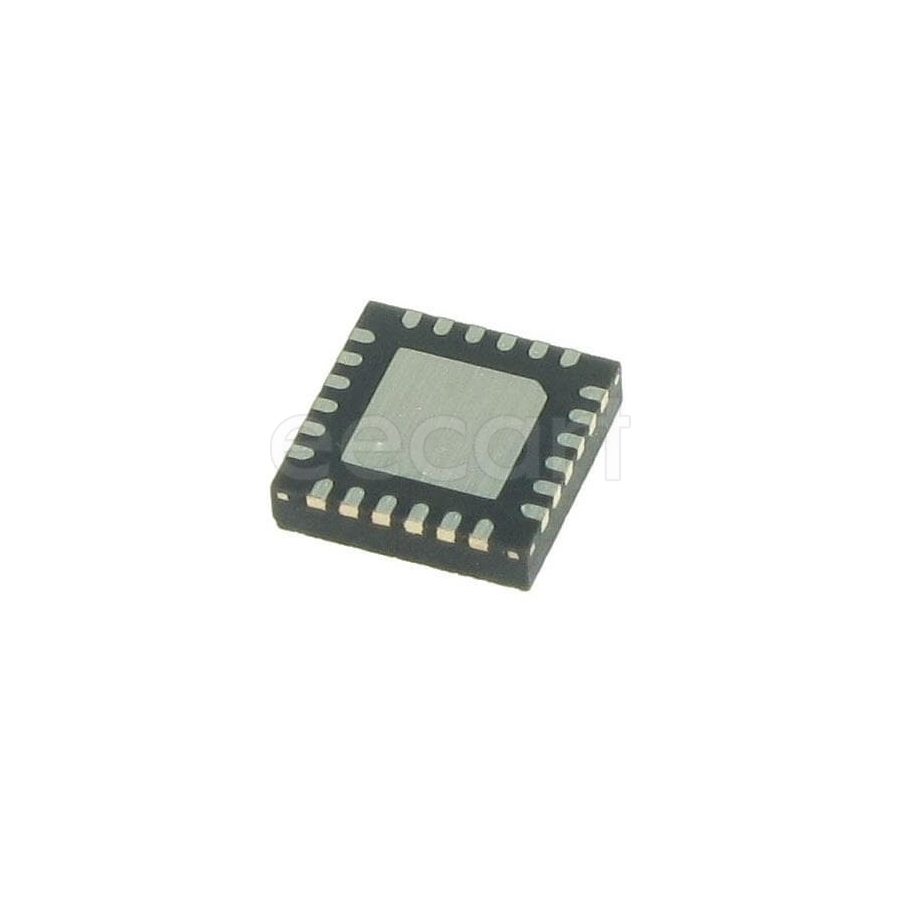

ATA6838C-PXQW-1
Manufacturer:
Microchip
Mfr.Part #:
ATA6838C-PXQW-1
Datasheet:
Description:
Motor Drivers QFN-24 LLC(QFN) SPI Load voltage:5.5 V to 40 V Half Bridge (6)
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Packaging | Reel |
| RoHS | Compliant |
| Interface | SPI |
| Output Current | 950 mA |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Max Output Current | 950 mA |
| Max Supply Current | 150 µA |
| Logic Function | AND |
| Number of Outputs | 6 |
| Operating Supply Voltage | 4.75 V to 5.25 V |
| Load Voltage | 5.5 V to 40 V |
| Motor Type - AC, DC | Brushed DC |
| Applications | General Purpose |
| Chemistry/Technology | Power MOSFET |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (6) |
Out of Stock
Distributors
--
--Unit Price$--
Ext.Price$--
| Qty | Unit Price | Ext.Price |
|---|---|---|
No data | ||
